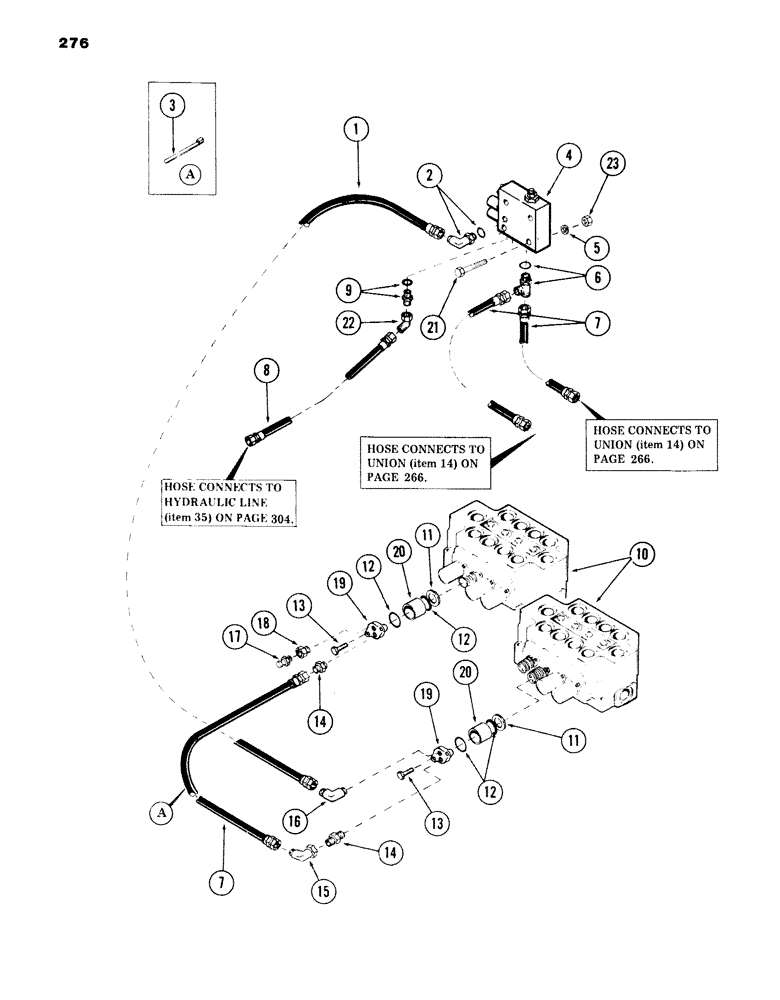

Запчасти Case 980B (276) - DRIVE LOCK TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S227396

HOSE ASSY.

HOSE, high pressure

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degrees adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.

4

REF

INSTRUCTION

VALVE, solenoid monoblock - (for breakdown, see Figure 280)

1шт.

5

195-102

WASHER,1/4"

flat - 5/16"

2шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

S77121

HOSE

high pressure - 1/4" ID x 20" long - (with 9/16" - 18 female pressed on couplings)

3шт.

8

S99421

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 23" long - (with 9/16" - 18 female pressed on couplings)

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (for breakdown, see Figure 284 or 286)

2шт.

11

S108084

WASHER

2шт.

12

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

"O" RING - 1.489" ID x 1.625" OD

4шт.

13

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

14

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

2шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degrees swivel - (3/8" tube) - 9/16" - 18 male x 9/16"- 18 female - 37 degrees flared

1шт.

16

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

17

D46258

PLUG

SCREW, bleeder

1шт.

18

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING, reducer - 1/4" NPT male x 1/8" NPT female

1шт.

19

S108082

HEAD

2шт.

20

S108085

TUBE, cylinder 150 mm ID x 188.5 mm OD x 176.5, 202 mm L

2шт.

21

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

22

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

45 degrees swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

1шт.

23

131-462

NUT,5/16"-18

NUT, self locking - 5/16" - 18 NC

2шт.
