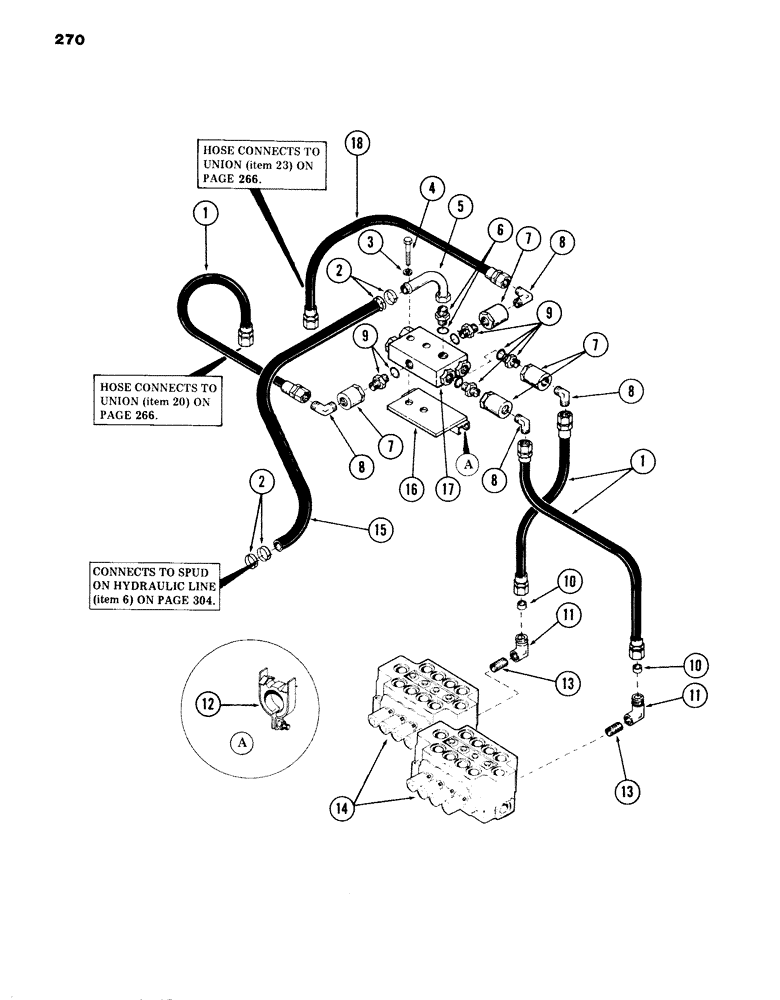

Запчасти Case 980B (270) - MAIN CONTROL VALVES POWER SENSING TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S77121

HOSE

high pressure - 1/4" ID x 20" long - (with 9/16" - 18 female pressed on couplings)

3шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

5

S226547

LINE, hydraulic 0.75" OD x 5, 3.75" L

1шт.

6

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4" tube) - 3/4" - 16 male x 1-1/16" - 12 male - 37 degrees flared

1шт.

7

S98004

FILTER

VALVE, check

1шт.

S18960

O-RING,-208, 90 Duro, .609" ID x .139" Thk

4шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

4шт.

9

218-5443

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

4шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

10

S89669

VALVE

RESTRICTOR, flow

2шт.

11

218-525

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/8"-27, Fem NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/8" NPT female - 37 degrees flared

2шт.

12

S93266

CLAMP

2шт.

13

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 1/8" NPT male

2шт.

14

REF

INSTRUCTION

VALVE, 4-spool main control - (for breakdown, see Figures 284 or 286)

2шт.

15

S202580

HOSE, low pressure - (BULK) - 1 piece - 3/4" ID x 20" long

1шт.

16

S231306

BRACKET

1шт.

17

REF

INSTRUCTION

VALVE, dual sensing relief - (for breakdown, see Figure 274)

1шт.

18

S77121

HOSE

high pressure - 1/4" ID x 20" long - (with 9/16 - 18 female pressed on couplings)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

1шт.
