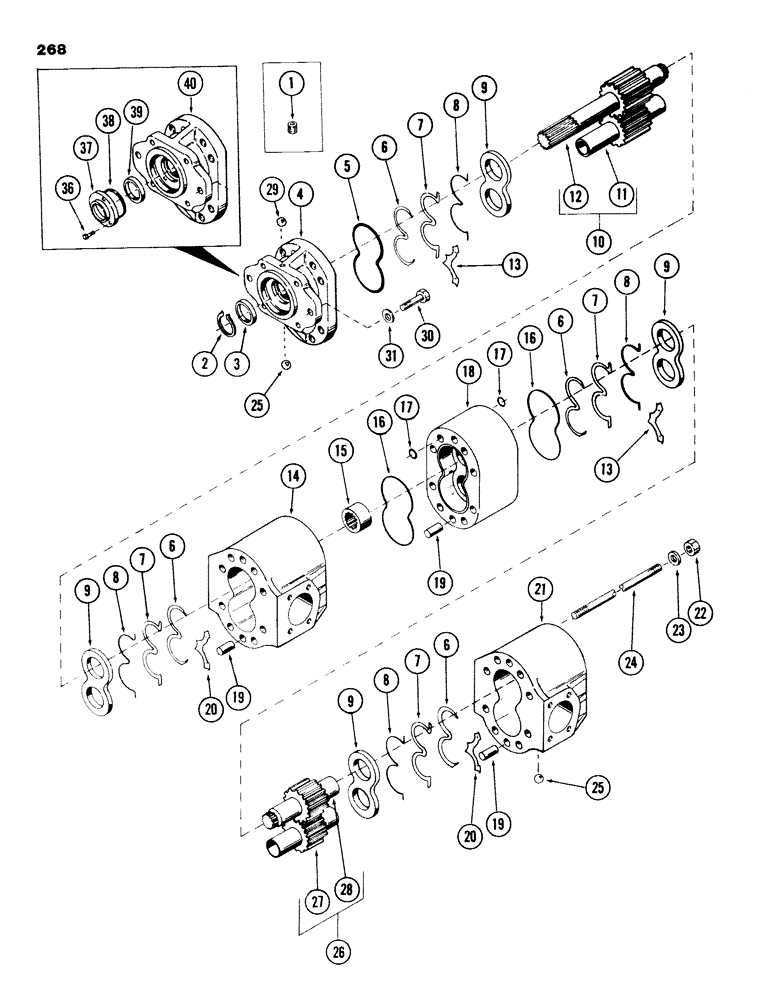

Запчасти Case 980B (268) - MAIN HYDRAULIC PUMP, ITEMS LISTED BELOW WERE USED ON SOME EARLIER UNITS (07) - HYDRAULIC SYSTEM

S513591

PUMP

main hydraulic, Includes: Ref. 2 - 29

1шт.

2

L35776

PLUG

- (into discharge port)

1шт.

Part of front section kit, P/N S23684

1шт.

3

D414419

RING, snap

1шт.

Part of seal kit, P/N S113934

1шт.

Part of front section kit, P/N S23684

1шт.

4

S112363

FLANGE

1шт.

Part of front section kit, P/N S23684

1шт.

S109040

BUSHING

- (NOT ILLUSTRATED)

2шт.

Part of front section kit, P/N S23684

1шт.

5

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING

1шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of seal kit, P/N S113934

1шт.

Part of front section kit, P/N S23684

1шт.

6

S108490

OIL SEAL

RING, retainer

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

7

S114828

OIL SEAL

RING, back-up

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

8

S108891

SEAL

"O" RING

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

9

S114855

PLATE

pressure

4шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

10

S108901

GEAR

KIT, front drive gear, Includes: Ref. 11 and 12

1шт.

Part of front section kit, P/N S23684

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR, idler - (FRONT)

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR, drive - (FRONT)

1шт.

13

S108894

PLATE

isolation - (TOP)

2шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

14

S108486

BODY

front section

1шт.

Part of front section kit, P/N S23684

1шт.

S109040

BUSHING

- (NOT ILLUSTRATED)

2шт.

Part of front section kit, P/N S23684

1шт.

15

S108895

COUPLING

splined

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

16

S98713

O-RING

"O" RING

2шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

17

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

"O" RING - stud stabilizer

16шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of rear section kit, P/N S236845

1шт.

18

S108488

PLATE, bearing

1шт.

Part of rear section kit, P/N S236845

1шт.

S109040

BUSHING

- (NOT ILLUSTRATED)

2шт.

19

D41414

PIN

DOWEL

6шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

20

S108893

PLATE

bearing

1шт.

Part of rear section kit, P/N S236845

1шт.

Part of front section kit, P/N S23684

1шт.

21

S108487

BODY

rear section

1шт.

Part of rear section kit, P/N S236845

1шт.

S109040

BUSHING

- (NOT ILLUSTRATED)

2шт.

22

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 NF

8шт.

23

S98714

WASHER

flat - 5/8"

8шт.

24

S108898

STUD

8шт.

25

211-101

BALL,1/4" Dia, Stainless

2шт.

Part of rear section kit, P/N S236845

1шт.

26

S108902

KIT, rear drive gear, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR, idler - (REAR)

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR, drive - (REAR)

1шт.

29

S113599

BALL

1шт.

30

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

31

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat - 5/8"

2шт.

32

S113934

KIT

seal, Includes: Ref. 3 and 5

1шт.

33

S109083

KIT

pressure balance, Includes: Ref. 5 thu 8, 16 and 17

1шт.

34

S23684

KIT, front section, Includes: Ref. 2 thu 10, 13 thu 16, 19 and 20

1шт.

35

S236845

BODY

KIT, rear section, Includes: Ref. 6 thu 9, 13, 15 thru 21, 25 and 26

1шт.

36

26-410

CPSW - 1/4" - 20 NC x 5/8", this item used on some earlier units Hex, 1/4"-20 x 5/8", G8, Full Thd

3шт.

37

S108897

PLATE, seal, this item used on some earlier units

1шт.

38

S5633

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

"O" RING - 2.864" ID x 3.000" OD, this item used on some earlier units

1шт.

39

S108896

SEAL, this item used on some earlier units

1шт.

40

S104895

FLANGE

this item used on some earlier units

1шт.

FOR PUMP DRIVE FROM ENGINE SEE PAGE 70.

1шт.
