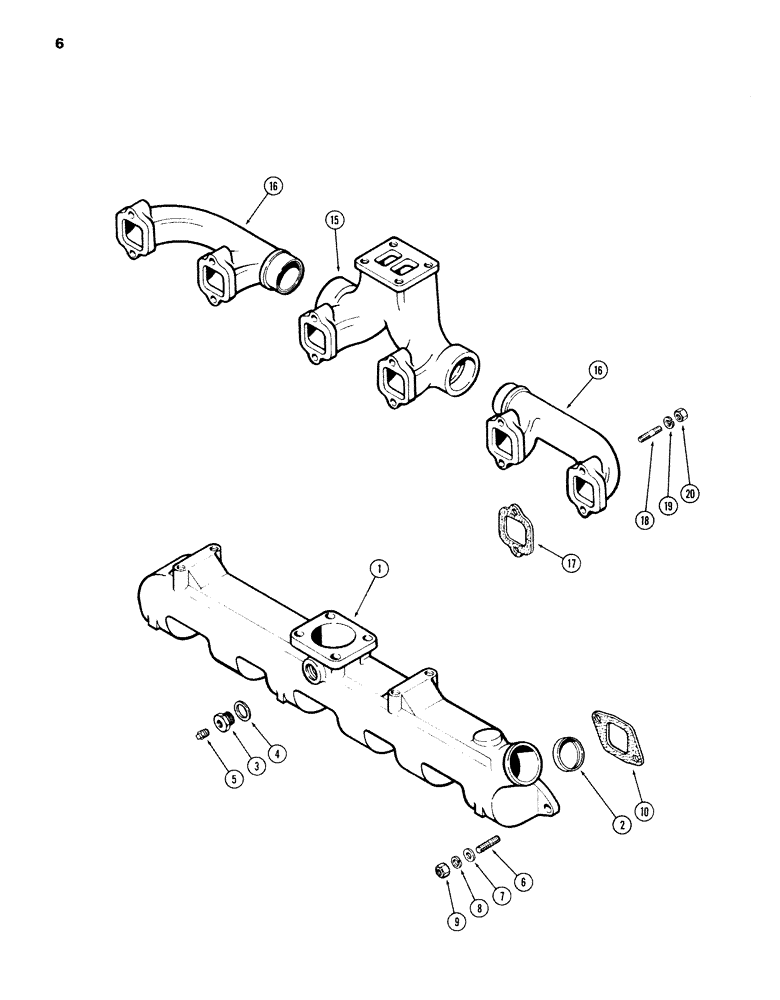

Запчасти Case 980B (006) - MANIFOLDS, 504BDT DIESEL ENGINE (01) - ENGINE

1

A66087

MANIFOLD

ASSY - intake, Includes: Ref. 2 - 5

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type (66.68 mm)

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

L20916

GASKET - plug

1шт.

Should be A20916

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

6

A59077

STUD

- intake manifold, 3/8" NC x 1-13/16"

12шт.

7

195-25

WASHER,3/8"

- intake manifold, 3/8 x 13/16 x 1/16"

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

25-166

NUT,3/8"-16, G5, Hvy

- intake manifold, 3/8" NC hex

12шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

15

A76322

MANIFOLD

- exhaust, center

1шт.

16

A65917

MANIFOLD

- exhaust, ends

2шт.

17

A58895

GASKET

- exhaust, manifold

6шт.

18

A140924

STUD

- exhaust manifold, 3/8" NC x 2-7/16"

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - exhaust manifold, 3/8" NC hex, Seez-Pruf

12шт.
