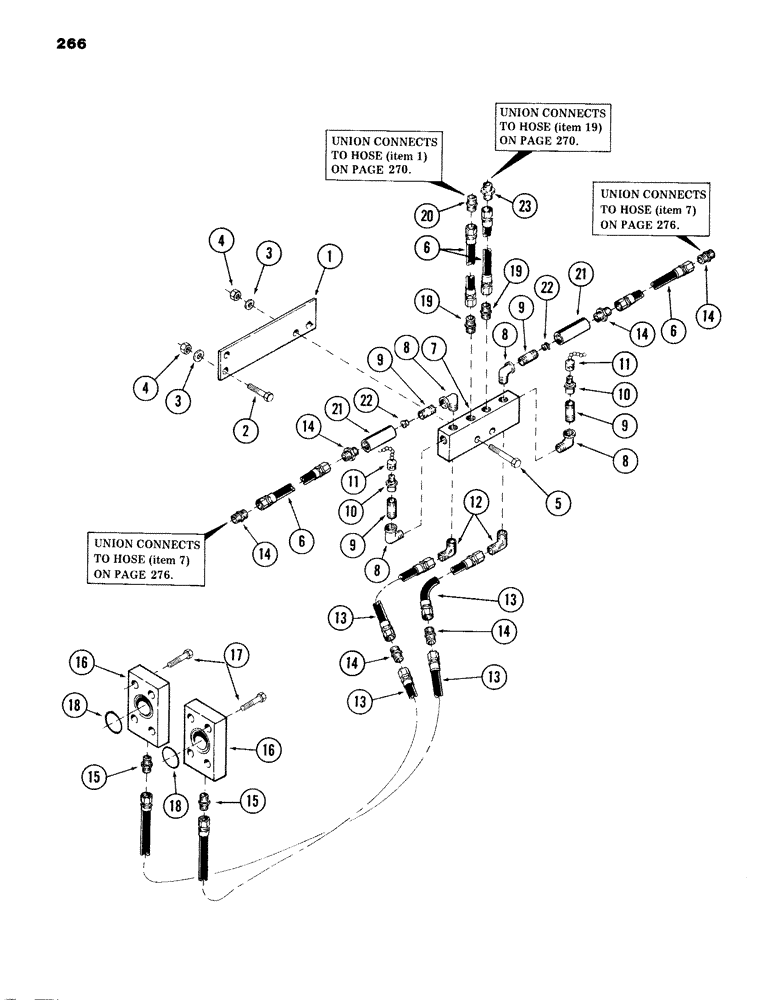

Запчасти Case 980B (266) - RESERVOIR TO PUMP TO VALVE TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S111201

BRACKET

1шт.

2

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

3

195-104

WASHER,3/8"

flat - 3/8"

4шт.

4

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

S77121

HOSE

high pressure - 1/4" ID x 20" long - (with 9/16" - 18 female pressed on couplings)

4шт.

7

S234190

BLOCK, pressure tap

4шт.

8

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

4шт.

9

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT male x 1/4" NPT male

4шт.

10

S206607

DISC

ONNECT, quick

2шт.

11

S206608

CAP

dust

2шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

2шт.

13

S99421

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 23" long - (with 9/16" - 18 female pressed on couplings)

4шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

6шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

2шт.

16

S234191

BLOCK, pump adapter - (see ref 30 on figure 169)

2шт.

17

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

CPSW - 1/4" - 20 NC x 2" Gr 5

8шт.

18

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

2шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

20

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

21

S110789

VALVE

check

2шт.

22

S233837

NOZZLE CAP

ORIFICE

2шт.

23

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.
