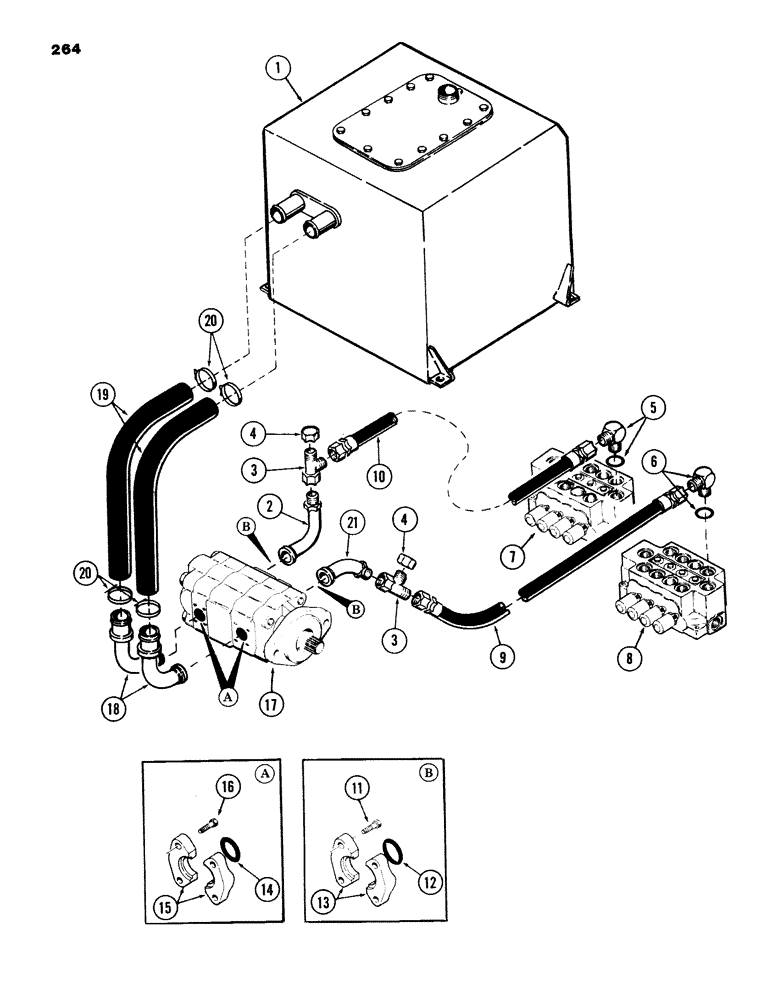

Запчасти Case 980B (264) - TANK TO PUMP TO VALVE TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

TANK - hydraulic oil (See Figures 258 or 260)

1шт.

2

S234439

ELBOW

ADAPTER - 90 degrees

1шт.

3

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1" tube x 1" tube x 1-5/16" - 12

2шт.

4

218-758

CAP,37 Degree, 1 5/16"-12

- 1" tube

2шт.

5

S7943

ELBOW

-90 degrees - 1" tube x 1-5/16" - 12

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

6

S113093

ELBOW

-90 degrees -1" tube x 1-5/16" - 12

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

7

REF

INSTRUCTION

VALVE - 4-spool main control (OUTSIDE) (See Figure 298)

1шт.

8

REF

INSTRUCTION

VALVE - 4-spool main control (INSIDE) (See Figure 296)

1шт.

9

S8628

HOSE

- main control, Serial Range: valve-pump

1шт.

10

S235936

HOSE

- main control, Serial Range: valve-pump

1шт.

11

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

12

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

13

A12301

CLAMP,Half

CLAMP - half flange

4шт.

14

S6322

RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

O-RING

2шт.

15

L14386

CLAMP

- half flange

4шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

17

REF

INSTRUCTION

PUMP - main hydraulic (See Figure 268)

1шт.

18

S288509

TUBE - main pump to hydraulic tank - (Replaces S213453)

2шт.

19

S202867

HOSE - hydraulic, 40" long (1016 mm)

2шт.

20

S85430

CLAMP

- hose

4шт.

21

S235919

ADAPTER

- 45 degrees

1шт.
