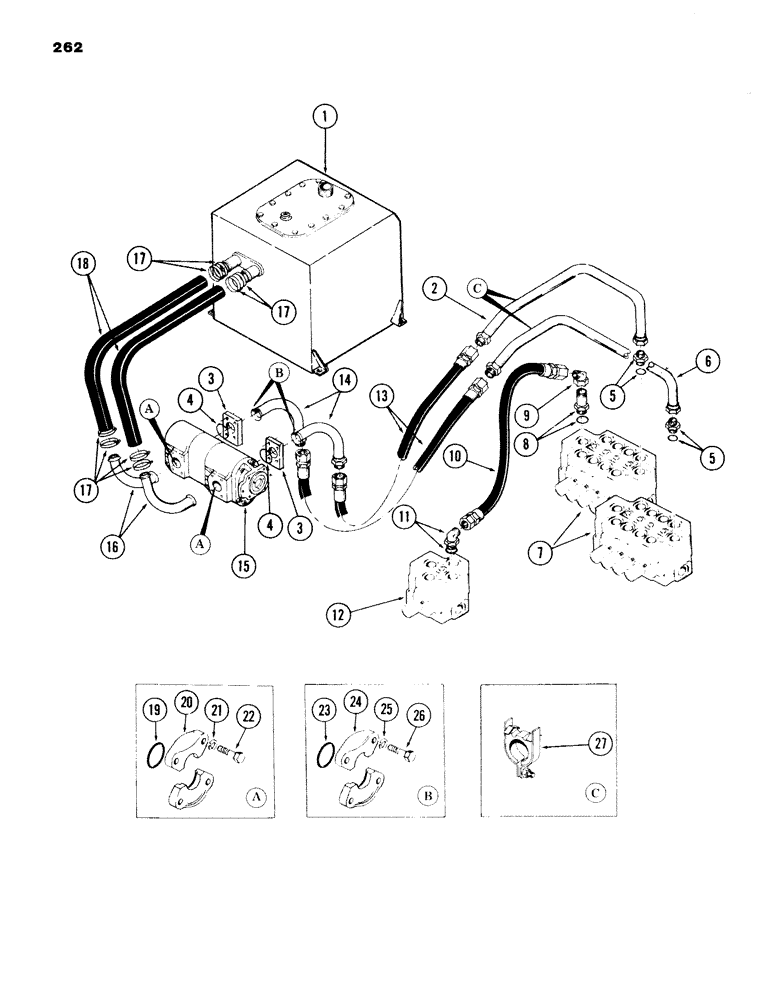

Запчасти Case 980B (262) - RESERVOIR TO PUMP TO VALVE TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (for breakdown, see Figure 258 or 260)

1шт.

2

S512203

TUBE,1.25" OD

LINE, hydraulic

1шт.

3

S234191

BLOCK, adapter - (see ref 16 on figure 266)

2шт.

4

S6589

O-RING

"O" RING - 1.484" ID x 1.762" OD

2шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) -1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

6

S512204

TUBE,1.25" OD

LINE, hydraulic

1шт.

7

REF

INSTRUCTION

VALVE, 4-spool main control - (for breakdown, see Figures 284 or 286)

2шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

CONNECTOR, straight - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (used with OPTIONAL leveler only)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees swivel - (1" tube) - 1-5/16" - 12 female - 37 degrees - (used with OPTIONAL leveler only)

1шт.

10

S8628

HOSE

high pressure - 1" ID x 36" long - (with 1-5/16" - 12 female pressed on couplings) - (used with OPTIONAL leveler only)

1шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degrees adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (used with OPTIONAL leveler only)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

1шт.

12

REF

INSTRUCTION

VALVE, 1-spool main control - (for breakdown, see Figure 208) - (used with OPTIONAL leveler only)

1шт.

13

S8628

HOSE

high pressure - 1" ID x 36" long - (with 1-5/16" - 12 female pressed on couplings)

2шт.

14

A234197

LINE, hydraulic

2шт.

15

REF

INSTRUCTION

PUMP, main hydraulic - (for breakdown, see Figure 268)

1шт.

16

S238509

TUBE,2" OD x 4.81, 8" L

LINE, hydraulic - (Replaces S231453)

2шт.

17

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

8шт.

18

S202867

HOSE, low pressure - (BULK) - 2 pieces - 2" ID x 37" long

1шт.

19

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - 2.734" ID x 3.000" OD

2шт.

20

L14386

CLAMP

half flange

4шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

22

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

23

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

2шт.

24

A12301

CLAMP,Half

CLAMP, half flange

4шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

26

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

CPSW - 7/16" - 14 NC x 2-1/4" Gr 5

8шт.

27

S93266

CLAMP

1шт.

IF TUBE REF#C HAS EXTRA FITTING SEE MOD PROGRAM 3W77 - S/B 14-77.

1шт.
