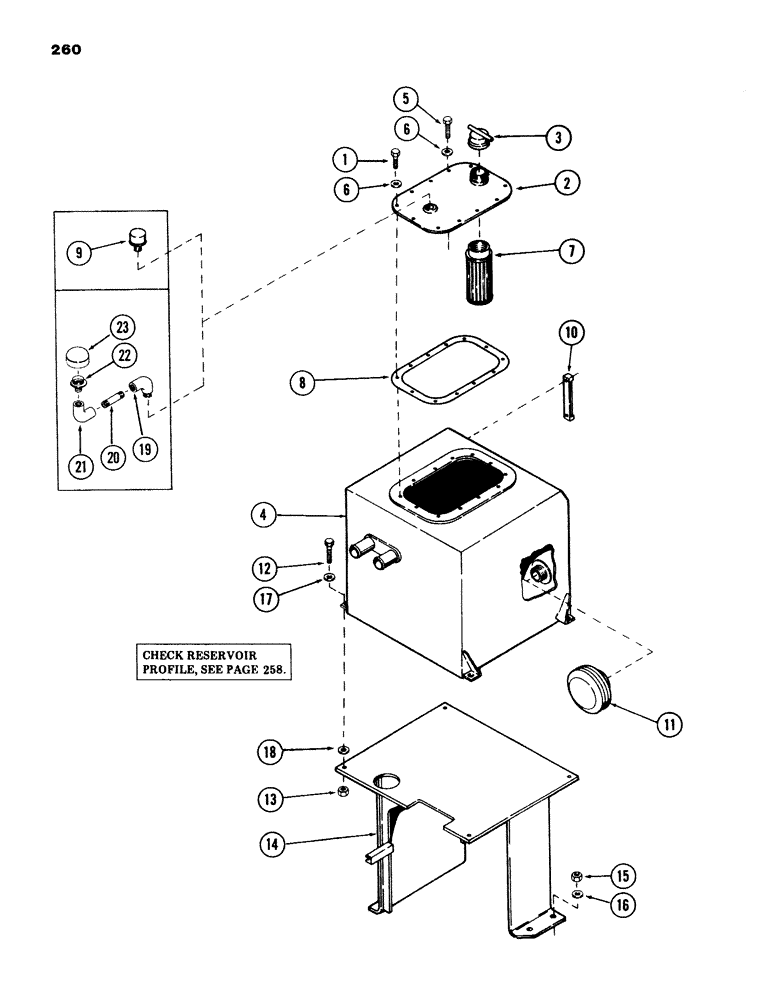

Запчасти Case 980B (260) - HYDRAULIC OIL TANK AND RELATED PARTS, (USED WITH TANK WITH SQUARE CORNERS) (07) - HYDRAULIC SYSTEM

S613279

TANK

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 4

1шт.

Before ordering any replacement parts check oil tank shape to determine if oil tank has round or square corners and order parts accordingly.

1шт.

1

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

2

S236359

COVER

- hydraulic oil tank

1шт.

3

S230688

CAP

- hydraulic oil tank cover

1шт.

4

S612899

TANK

- hydraulic oil

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-102

WASHER,1/4"

- flat 5/16"

12шт.

7

S107379

FILTER, ENGINE OIL

STRAINER - hydraulic oil tank cover (100 mesh)

1шт.

8

S230621

GASKET

- hydraulic oil tank cover

1шт.

9

S91864

BREATHER

- hydraulic oil tank (Replaces A 75179) (used on units prior to PIN 6204053)

1шт.

10

S107269

GAUGE

- hydraulic oil tank level

1шт.

This gauge comes with fasteners, per print, if seal

1шт.

11

S107145

DIFFUSER

- hydraulic oil tank

2шт.

12

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Supersedes 113-208) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

4шт.

14

S510155

BRACKET - (used on units prior to PIN 6204051)

1шт.

15

131-70

NUT,1/2"-13, GB

NUT - lock 3/8" NC hex (used on units prior to PIN 6204051)

4шт.

16

S95569

WASHER

- flat 1/2" (used on units prior to PIN 6204051)

4шт.

17

195-103

WASHER,5/16"

- flat 3/8"

4шт.

18

195-103

WASHER,5/16"

- flat 3/8" (used as shims)

1шт.

19

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- 90 degrees - 3/4" NPT male x 3/4" NPT female - (used on units with PIN 6204053 and after)

1шт.

20

221-1922

NIPPLE, LUBE

NIPPLE - 3/4" NPT male x 2-1/2" long - (used on units with PIN 6204053 and after)

1шт.

21

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degrees - 3/4" NPT male x 3/4" NPT female - (used on PIN 6204053 and after)

1шт.

22

S115101

ADAPTER

- air filter (used on units with PIN 6204053 and after)

1шт.

23

S115102

AIR CLEANER

FILTER - air (used on units with PIN 6204053 and after)

1шт.
