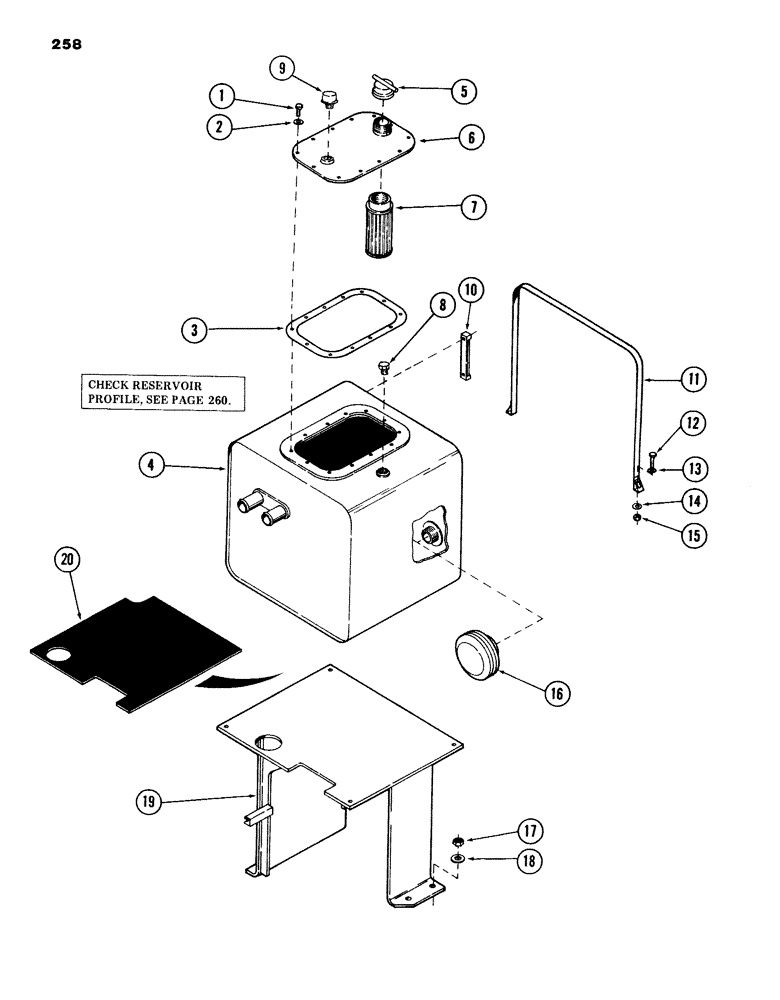

Запчасти Case 980B (258) - HYDRAULIC OIL TANK AND RELATED PARTS, (USED WITH TANK WITH ROUND CORNERS) (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

TANK ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 6

1шт.

Before ordering any replacement parts check tank profile. Some units used tank with round corners. When kit is replaced on these units, kit (ref. 21) which includes kit with square corners must be ordered.

1шт.

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

2

D26270

WASHER, SEALING

WASHER - seal

12шт.

3

S230621

GASKET

- hydraulic oil tank cover

1шт.

4

NSS

NOT SOLD SEPARAT

TANK - hydraulic oil tank cover

1шт.

5

S230688

CAP

- hydraulic oil tank

1шт.

6

S230622

COVER

- hydraulic oil tank

1шт.

7

S107379

FILTER, ENGINE OIL

STRAINER - hydraulic oil tank (100 mesh)

1шт.

8

221-655

PLUG,Hex Hd, 3/4"-14

- pipe 3/4" NPT MALE

1шт.

9

S91864

BREATHER

- hydraulic oil tank (Replaces A 75179), Serial Range: 6203751-6204052

1шт.

10

S107269

GAUGE

- hydraulic oil tank level

1шт.

11

S107404

STRAP - hydraulic oil tank level

2шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

13

S108015

SPACER

4шт.

14

195-525

WASHER,3/8", SAE

- flat 3/8"

4шт.

15

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

4шт.

16

S107145

DIFFUSER

- hydraulic oil tank

2шт.

17

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

4шт.

18

S95569

WASHER

- flat 1/2"

4шт.

19

S510155

BRACKET - hydraulic oil tank mounting

1шт.

20

S510158

PAD

1шт.

21

S613295

KIT

- hydraulic oil tank (includes all items necessary to convert to square cornered tank), Includes all parts listed below

1шт.

S612899

TANK

- hydraulic oil

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S230621

GASKET

- hydraulic oil tank cover

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S236359

COVER

- hydraulic oil tank

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S91864

BREATHER

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S236134

- 90 degrees

2шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

A14157

FLANGE

CLAMP - half flange

4шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1.859" ID x 2.137" OD

2шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" x 1-1/4" NC (Grade 5)

8шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S28123

HOSE

- low pressure (BULK) 1 piece - 1-1/2" ID x 17" long

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S28123

HOSE

low pressure (BULK) 1 piece - 1-1/2" ID x 14" long

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S513606

TUBE ASSY.,1.5" OD

TUBE - hydraulic

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.

S233480

DECAL

- oil level

1шт.

FIELD REWORK KIT IS P/N S61476.

1шт.

SEE S/B 19-79 (jm)

1шт.

Part of hydraulic oil tank kit, P/N S613295

1шт.
