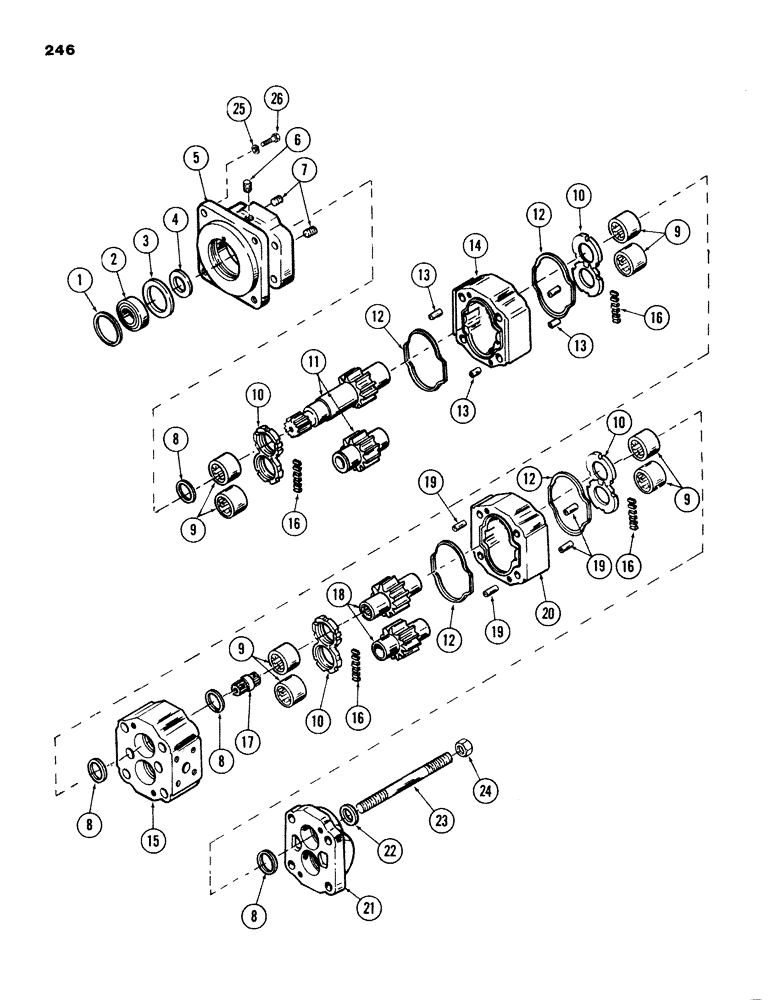

Запчасти Case 980B (246) - SWING MOTOR, (USED ON UNITS WITH PIN 6203984 AND AFTER) (07) - HYDRAULIC SYSTEM

S513584

MOTOR

- swing, Includes: Ref. 1 - 24

1шт.

1

S88756

SNAP RING,#283, 3.009", Int, Spiral

RING - snap

1шт.

2

S88754

BALL BEARING

BEARING - ball

1шт.

3

S94908

STOP LOCK

RETAINER - seal

1шт.

4

S94907

SEAL

- lip

1шт.

5

S114864

COVER - motor shaft end

1шт.

6

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" PT square head

1шт.

7

S61749

VALVE

CHECK ASSEMBLY

2шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring

4шт.

9

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

8шт.

10

D31955

PLATE

- thrust

4шт.

11

S114862

GEAR SET - motor

1шт.

12

D4139

GASKET - housing

4шт.

13

W16323

DOWEL

PIN - dowel

4шт.

14

S236850

HOUSING - gear set

1шт.

15

S114863

CARRIER

- bearing

1шт.

16

E19456

SUPPORT

SEAL - pocket -, Serial Range: (cut-length)

2шт.

17

S113571

SHAFT - connecting

1шт.

18

S113571

GEAR SET - motor

1шт.

19

W16323

DOWEL

PIN - dowel

4шт.

20

S236850

HOUSING - gear set

1шт.

21

D73613

COVER

- port end

1шт.

22

D31957

WASHER

- flat 21/32"

4шт.

23

S109025

STUD

4шт.

24

86625068

NUT,5/8"-11, G8

- 5/8" NC hex

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.
