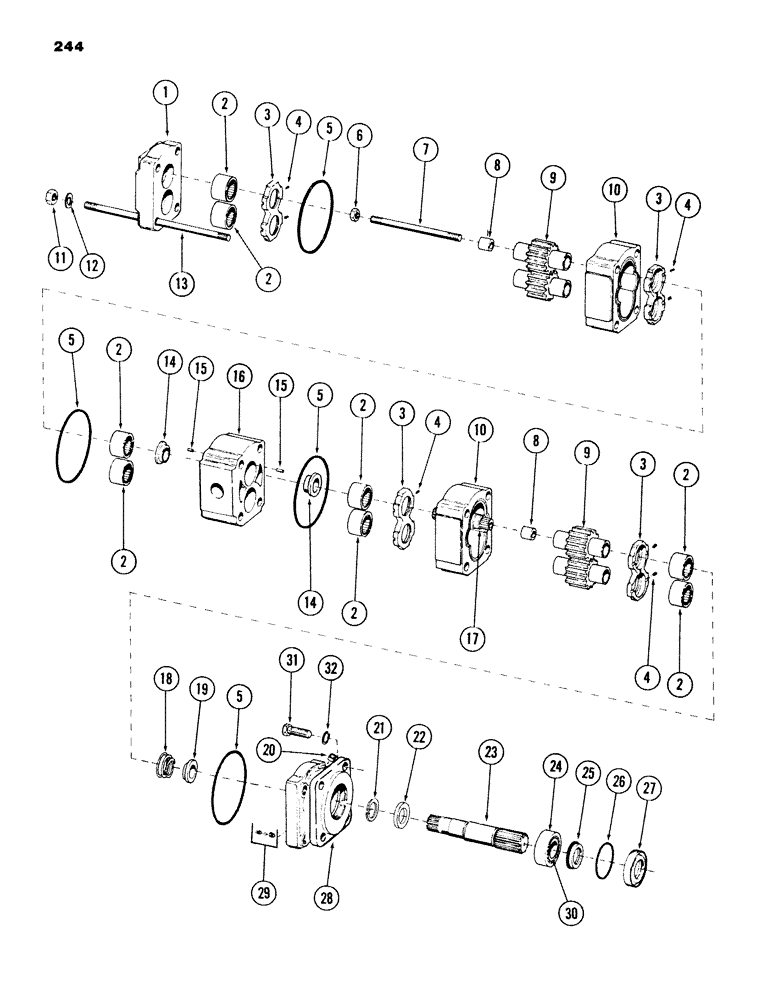

Запчасти Case 980B (244) - SWING MOTOR, (USED ON UNITS PRIOR TO PIN 6203984) (07) - HYDRAULIC SYSTEM

S511208

MOTOR

swing, Includes: Ref. 1 - 30

1шт.

1

A24842

COVER, port end

1шт.

2

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

3

D31955

PLATE

thrust

4шт.

4

D35673

SEAL

pocket

24шт.

5

D41391

O-RING

"O" RING - 4.109" ID x 4.375" OD

4шт.

6

S63533

LOCK NUT

NUT, lock

1шт.

7

S109026

STUD, connecting - (internal)

1шт.

8

S70136

SPACER

2шт.

9

A24838

GEAR SET

GEAR, set - 2"

2шт.

10

S74508

HOUSING, gear

2шт.

11

86625068

NUT,5/8"-11, G8

- 5/8" - 11 NC

4шт.

12

D31957

WASHER

flat - 21/32"

4шт.

13

S109025

STUD, connecting - (external)

4шт.

14

S63528

BUSHING

shaft

2шт.

15

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

16

S109022

CARRIER

bearing

1шт.

17

S63530

SHAFT

connecting

1шт.

18

D31953

VALVE SPRING

SPRING

1шт.

19

D31952

BUSHING

shaft

1шт.

20

S95139

PLUG, pipe - 1/4" NPT

1шт.

21

B18208

SNAP RING,#100, Ext

1шт.

22

D31950

SPACER

1шт.

23

D31958

SHAFT

1шт.

24

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP

1шт.

25

S70416

OIL SEAL

lip

1шт.

26

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

27

S70415

RETAINER

RING, retainer

1шт.

28

S109027

COVER, shaft end

1шт.

29

S61749

VALVE

CHECK ASSEMBLY

2шт.

30

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
