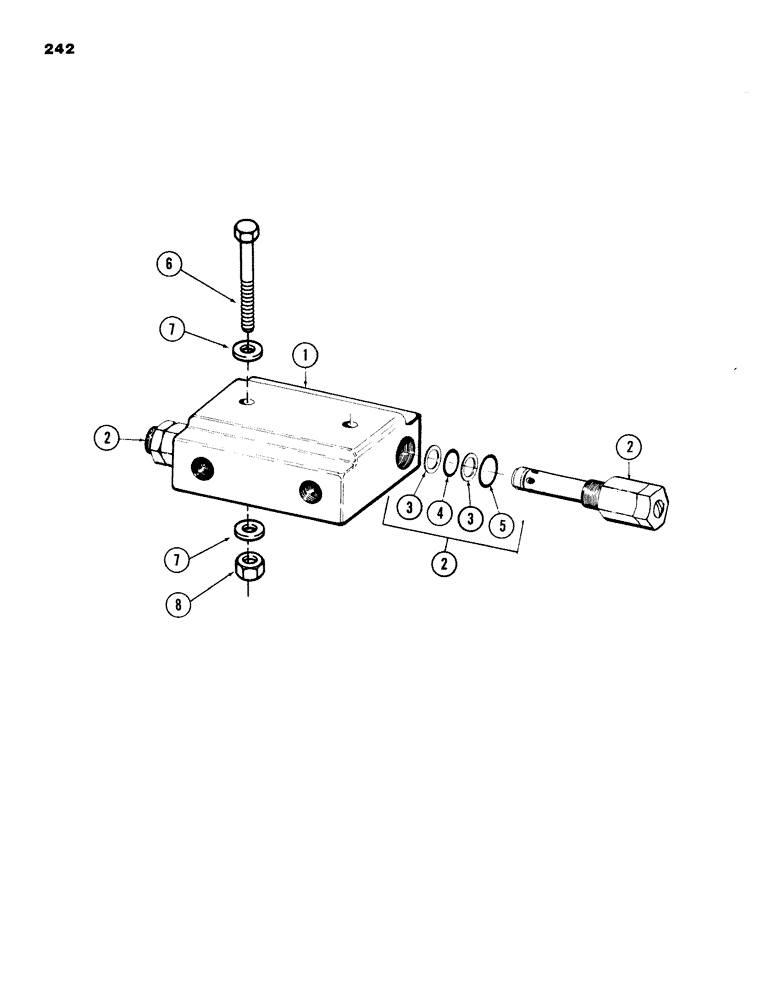

Запчасти Case 980B (242) - SWING INLINE RELIEF VALVE (07) - HYDRAULIC SYSTEM

S236820

VALVE

swing inline relief, Includes: Ref. 1 - 35

1шт.

1

S114840

HOUSING

valve

1шт.

2

S73968

CARTRIDGE

relief, Includes: Ref. 3 - 5

2шт.

3

D24036

WASHER

RING, back up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - 1.046" ID x 1.312" OD

1шт.

6

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

7

195-521

WASHER,5/16", SAE

- flat 5/16"

4шт.

8

131-462

NUT,5/16"-18

NUT - lock 5/16" NC (hex)

2шт.
