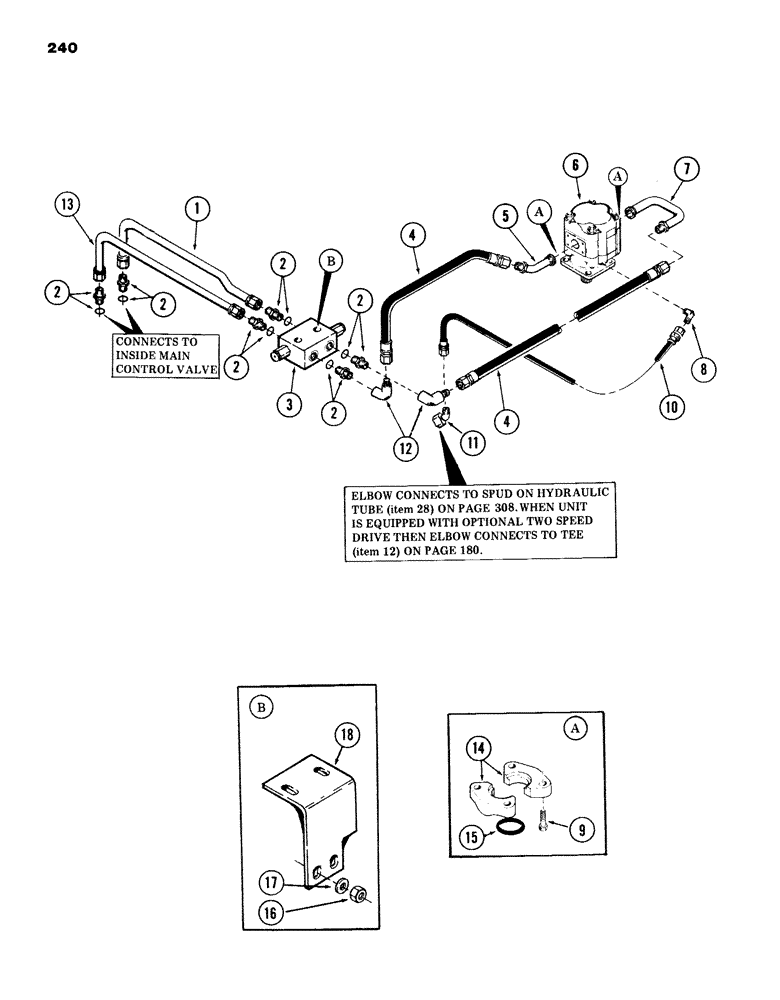

Запчасти Case 980B (240) - SWING MOTOR TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (07) - HYDRAULIC SYSTEM

1

S234837

TUBE ASSY.,1.25" OD

TUBE - main valve to inline relief valve

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

6шт.

3

REF

INSTRUCTION

VALVE - swing inline relief - (See Figure 242)

1шт.

4

S8628

HOSE

- inline relief valve to swing motor

2шт.

5

S235919

ADAPTER

TUBE - swing motor

1шт.

6

REF

INSTRUCTION

MOTOR - swing - (See Figure 246)

1шт.

7

S234839

TUBE - swing motor to inline relief valve 1.25" OD x 5.06, 8.06" L

1шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees - 1/4" PT

1шт.

9

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- 7/16" x 2-3/4" NC hex (Grade 5)

8шт.

10

S227395

HOSE

- hydraulic

1шт.

11

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degrees - 5/8" tube x 9/16" - 18, swivel

1шт.

12

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees - 1" tube x 1-5/16" - 12, swivel

2шт.

13

S234835

TUBE - main valve to inline relief valve 1.25" OD x 27.41, 6.81" L

1шт.

14

A12301

CLAMP,Half

CLAMP - tube

4шт.

15

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

16

131-70

NUT,1/2"-13, GB

NUT - lock - 1/2" NC hex

2шт.

17

S95569

WASHER

flat - 1/2"

2шт.

18

S513951

BRACKET - valve mounting - (used on units with PIN 6204051 and after)

1шт.
