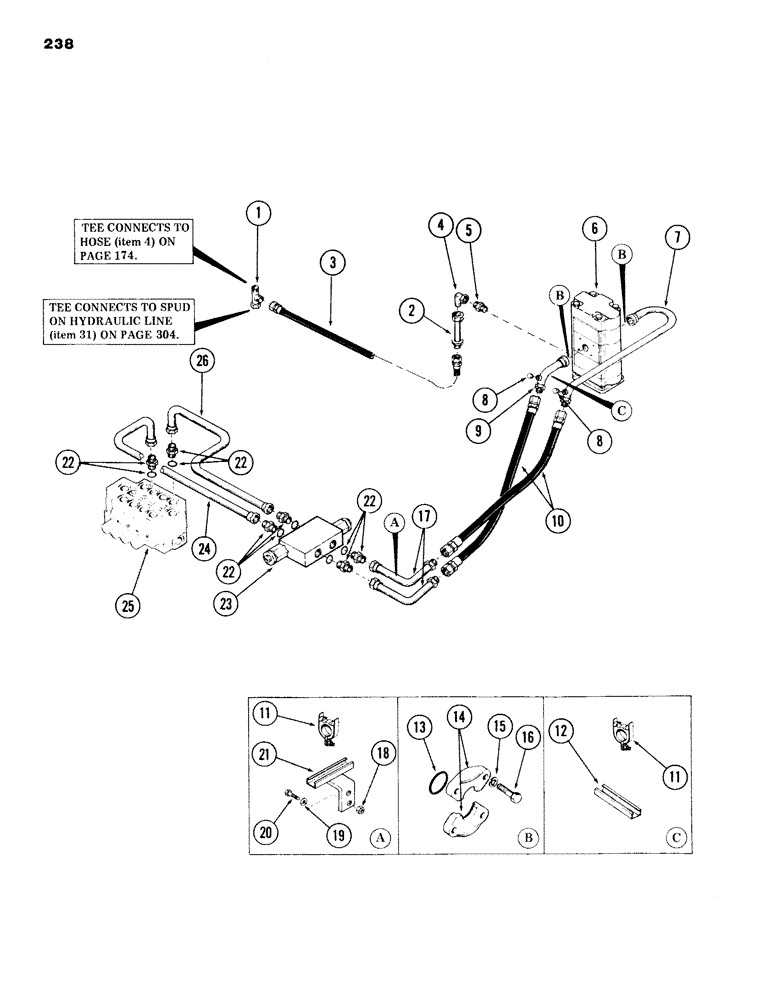

Запчасти Case 980B (238) - SWING MOTOR TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 3/8" tube - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degrees flared

1шт.

2

S233313

TUBE ASSY.,0.375" OD x 3.3" L

LINE, hydraulic - (Replaces S231177)

1шт.

3

S77121

HOSE

high pressure - 1/4" ID x 20" long - (with 9/16" - 18 female pressed on couplings)

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degrees swivel - (3/8" tube) - 9/16" -18 male x 9/16" - 18 female - 37 degrees flared

1шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 3/8" NPT male

1шт.

6

REF

INSTRUCTION

MOTOR, swing - (for breakdown, see Figure 240)

1шт.

7

S231148

LINE, hydraulic

1шт.

8

221-1661

PLUG

pipe - 1/4" NPT male

2шт.

9

S231148

LINE, hydraulic

1шт.

10

S8628

HOSE

high pressure - 1" ID x 36" long - (with 1-5/16" - 12 female pressed on couplings)

2шт.

11

S93266

CLAMP

4шт.

12

S98414

CHANNEL

1шт.

13

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING

2шт.

14

A12301

CLAMP,Half

CLAMP, half flange

4шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

16

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

17

S23144

LINE, hydraulic

2шт.

18

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

19

S95569

WASHER

flat - 1/2"

2шт.

20

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

21

S229147

BRACKET, clamp mounting

1шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

6шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

6шт.

23

REF

INSTRUCTION

VALVE, swing inline relief - (for breakdown, see Figure 242)

1шт.

24

S229698

LINE, hydraulic 1.25" OD

1шт.

25

REF

INSTRUCTION

VALVE 4-spool main control - (for breakdown, see Figure 284)

1шт.

26

S229699

TUBE,1.25" OD

LINE, hydraulic

1шт.
