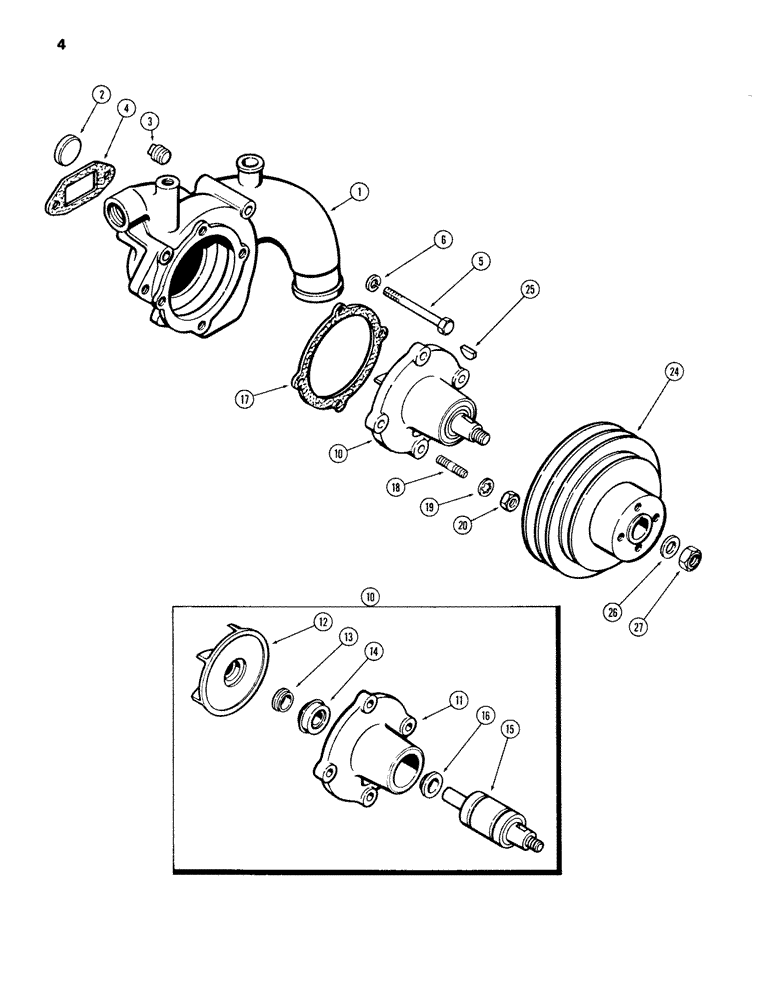

Запчасти Case 980B (004) - WATER PUMP, 504BDT DIESEL ENGINE (01) - ENGINE

1

A60630

HOUSING

BODY ASSY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type (34.93 mm)

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT, square head

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Body to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

5

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Body to block Hex, 3/8"-16 x 2 1/4", G5

1шт.

5

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, , Body to block Hex, 3/8"-16 x 4", G5

1шт.

6

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

A152153

PUMP

PUMP ASSY - water (Replaces A62974), Includes: Ref. 11 - 16

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

12

A152126

IMPELLER

IMPELLER

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A58643

SHAFT

SHAFT ASSEMBLY - with bearing, Includes: Ref. 16

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A62234

STUD

STUD - pump to body, 3/8" NC x 1-5/16"

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex, jam

4шт.

24

A58650

PULLEY

PULLEY - water pump

1шт.

25

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, , Pulley #9, 3/16" x 3/4", HT

1шт.

26

A58651

WASHER

WASHER - pulley, 1/2 x 1-1/16 x 1/16" (12.7 x 27.0 x 1.59 mm)

1шт.

27

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.
