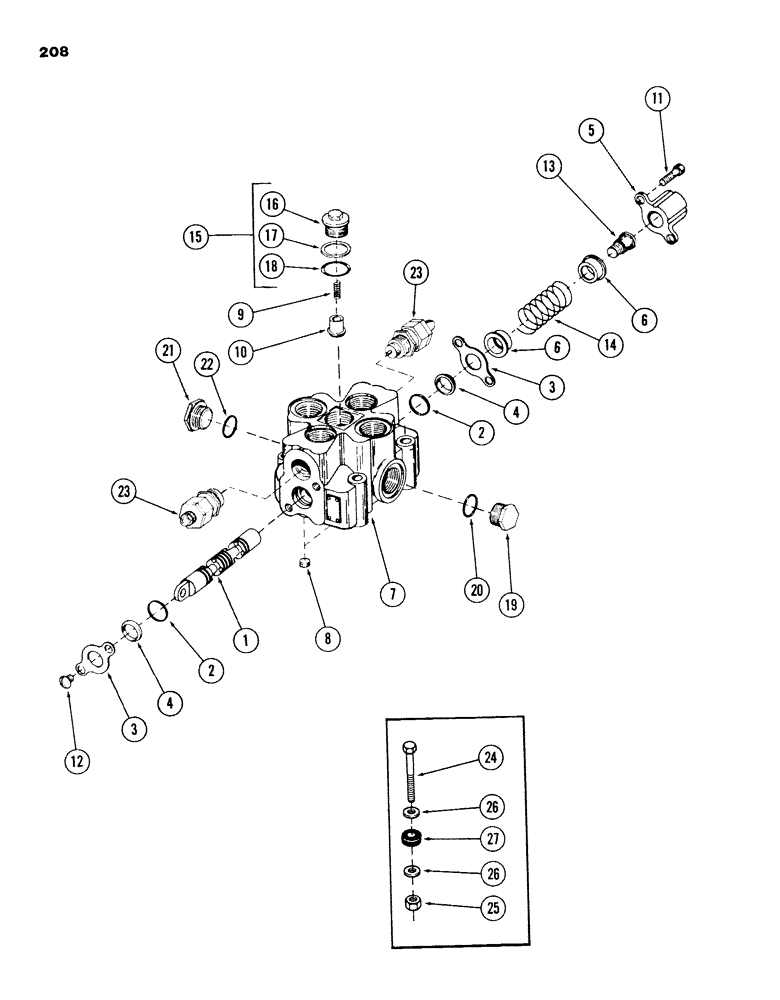

Запчасти Case 980B (208) - 1-SPOOL MAIN CONTROL VALVE, (USED WITH LEVELER CIRCUIT), (HUSCO) (07) - HYDRAULIC SYSTEM

S511546

VALVE, 1 spool main control, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

2шт.

3

S13829

PLATE

seal

2шт.

4

S62092

WIPER

2шт.

5

S62278

CAP

plunger

1шт.

6

S62288

SEAT

spring

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

S105060

PLUG

pipe

2шт.

9

S13715

SPRING

1шт.

10

S13716

VALVE POPPET

POPPET

1шт.

11

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW, socket head

2шт.

12

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" - 16 NC x 1/2"

2шт.

13

S62290

BOLT

CPSW, special

1шт.

14

S108192

SPRING

1шт.

15

S105062

PLUG

ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

S105094

PLUG

1шт.

17

S105095

RING

back up

1шт.

18

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING

1шт.

19

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

Includes: Ref. 20

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

1шт.

21

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 22 Hex Hd, 1 5/16"-12 ORB

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

1шт.

23

REF

INSTRUCTION

CARTRIDGE, port relief - set at 2500 PSI - (for breakdown, see Figure 290)

2шт.

24

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

Used on units prior to PIN 6204051 Hex, 1/2"-13 x 5 1/4", G5

2шт.

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2" - 13 NC x 4-1/4" - (used on units with PIN 6204051 and after)

2шт.

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2" - 13 NC x 3-3/4" - (used on units prior to PIN 6204051)

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Used on units with PIN 6204051 and after) Hex, 1/2"-13 x 3", G5

1шт.

25

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

6шт.

26

196-10

WASHER,.521" x 2" x .134", HDN

flat - 1/2" - (used on units prior to PIN 6204051)

6шт.

27

S110886

MOUNTING PARTS

MOUNT, lord - (used on units prior to PIN 6204051)

3шт.
