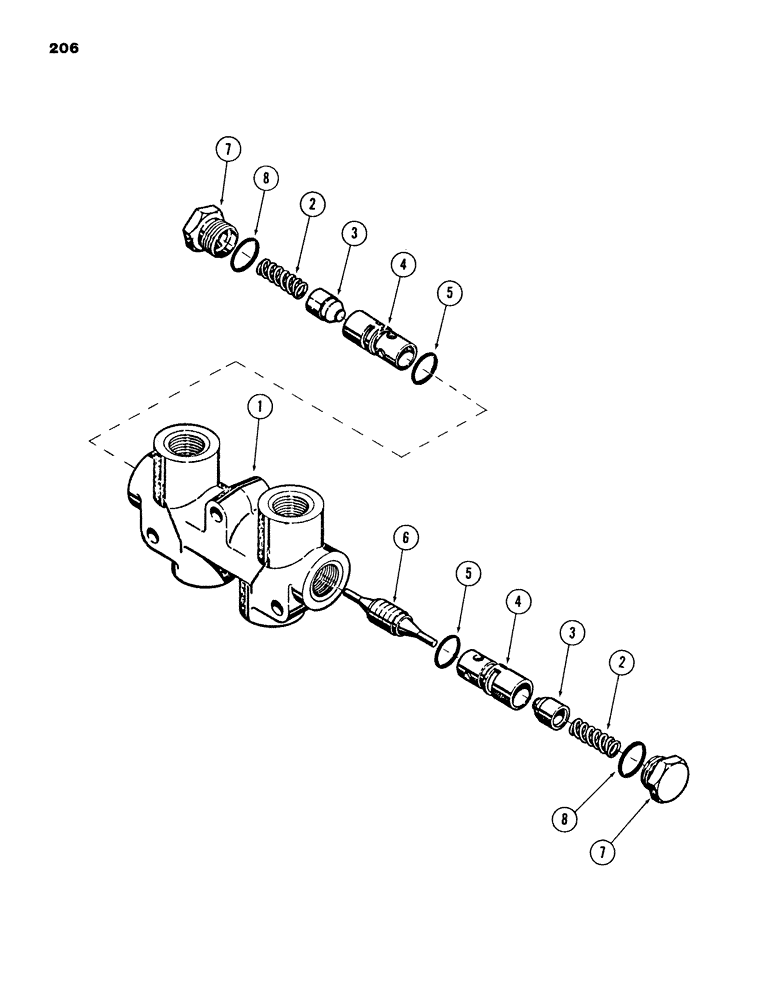

Запчасти Case 980B (206) - LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

D47256

VALVE

check, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, valve

1шт.

2

D48818

SPRING

poppet

2шт.

3

NSS

NOT SOLD SEPARAT

POPPET AND SLEEVE ASSEMBLY, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

POPPET

1шт.

5

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SLEEVE

1шт.

6

D48821

TRANSMISSION

SHUTTLE, valve

1шт.

7

D48822

PLUG

special

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING

2шт.
