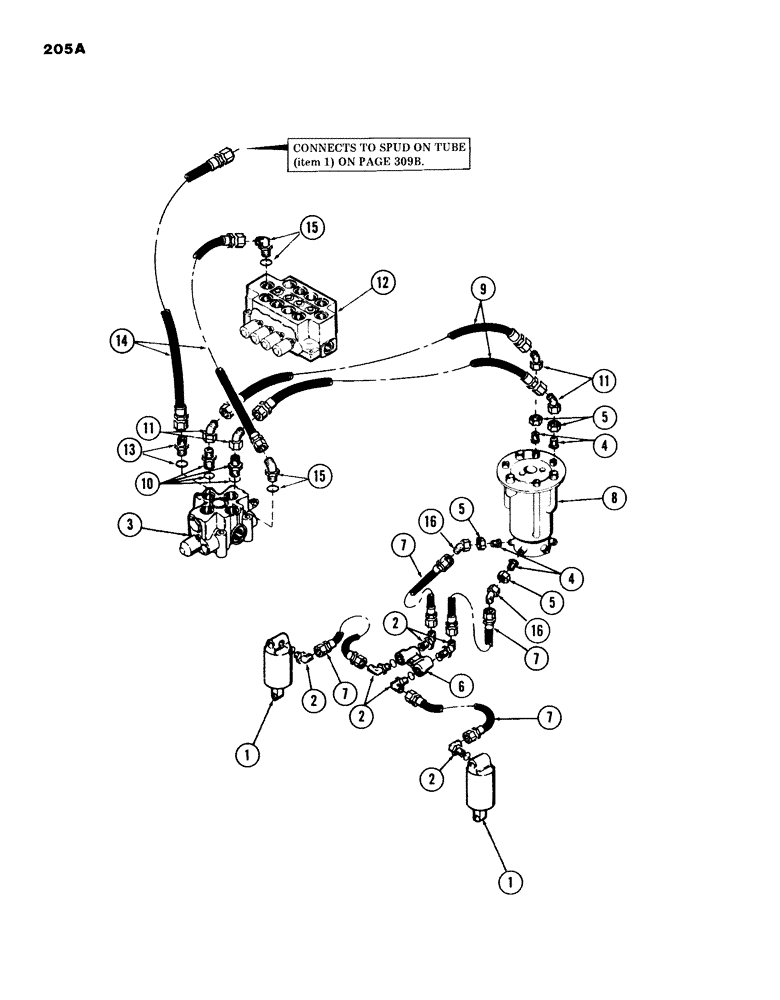

Запчасти Case 980B (205A) - LEVELER TUBING,(USED ON UNITS WITH LEVELER AND AUXILIARY TUBING,(USED ON UNITS W/ PIN 6204051 & AFT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER - leveler - (See Figure 140)

2шт.

2

S7939

ELBOW

- 90 degrees - 1/2" tube x 3/4" - 16

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

6шт.

3

REF

INSTRUCTION

VALVE - 1-spool main control - (See Figure 208)

1шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

CONNECTOR - 3/4" x 1/2" tube reduction

4шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - 3/4" tube x 1-1/16" - 12

4шт.

6

REF

INSTRUCTION

VALVE - check - (See Figure 206)

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (Valve mounting)

2шт.

195-102

WASHER,1/4"

flat 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

7

S11226

HOSE

- high pressure

4шт.

8

REF

INSTRUCTION

SWIVEL - 7-port - (See Figure 324)

1шт.

9

S11231

HOSE ASSY.

HOSE - high pressure

2шт.

10

S111648

CONNECTOR, ELEC

CONNECTOR - 1/2" tube x 3/4" - 16

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degrees 1/2" tube x 3/4" - 16

2шт.

12

REF

INSTRUCTION

VALVE - 4-spool main control - (See Figures 286 or 300)

1шт.

13

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

14

S8628

HOSE

- high pressure

2шт.

15

S11257

FITTING

ELBOW - 45 degrees 1/2" tube x 1-5/16" - 12 adjustable

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees - 1/2" tube x 3/4" - 16 swivel

2шт.
