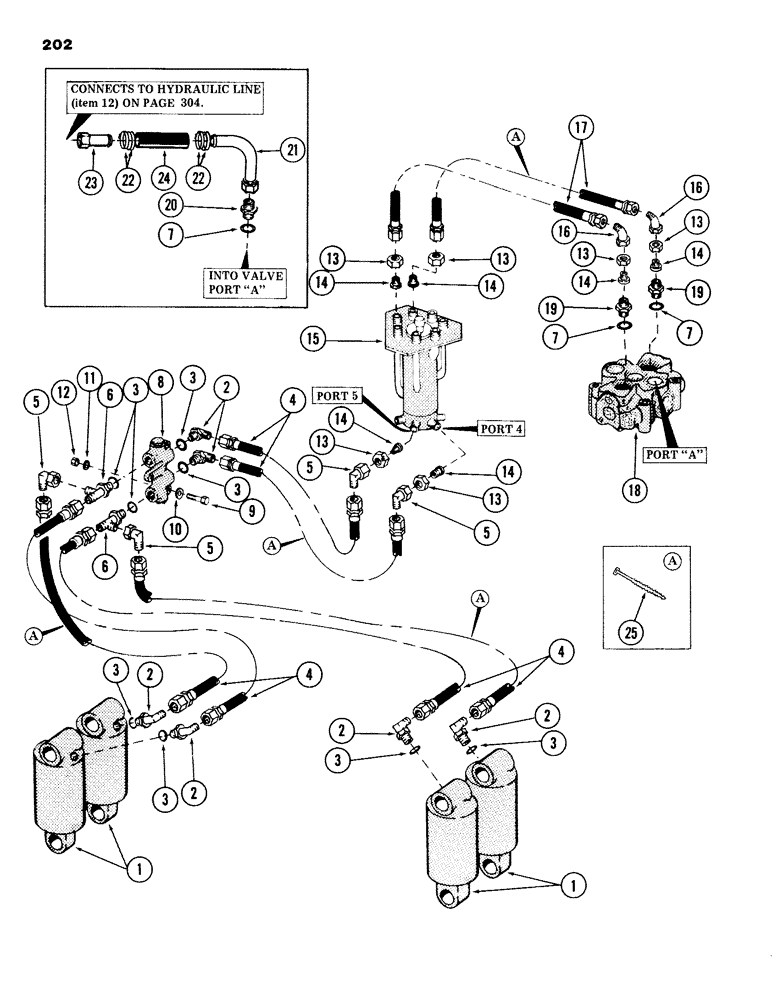

Запчасти Case 980B (202) - LEVELER TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, leveler - (for breakdown, see Figure 138)

4шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degrees adjustable - 3/4" - 16 male x 3/4" - 16 male 37 degrees flared

6шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

8шт.

4

S11226

HOSE

high pressure - 3/8" ID x 20" long - (with 3/4" - 16 female pressed on couplings)

6шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

4шт.

6

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

8

REF

INSTRUCTION

VALVE, leveler check - (for breakdown, see Figure 206)

1шт.

9

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

10

195-102

WASHER,1/4"

flat 1/4"

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

13

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

6шт.

14

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducer - (3/4" to 1/2" tube reduction) 3/4" - 16 male - 37 degrees flared

6шт.

15

REF

INSTRUCTION

SWIVEL, seven port hydraulic - (for breakdown, see Figure 324)

1шт.

16

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

17

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (with 3/4" - 16 female pressed on couplings)

2шт.

18

REF

INSTRUCTION

VALVE, main hydraulic - (for breakdown, see Figure 208)

1шт.

19

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - (1" tube) - 1-5/16" - 12 male x 1-1/16" - 12 male - 37 degrees flared

2шт.

20

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - (1-1/4" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male

1шт.

21

S229170

TUBE ASSY.

LINE, hydraulic

1шт.

22

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose

4шт.

23

S231593

TUBE ASSY.,1.5" OD x 5.5" L

LINE, hydraulic

1шт.

24

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 6" long

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, nylon - (secures leveler hoses)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

8шт.
