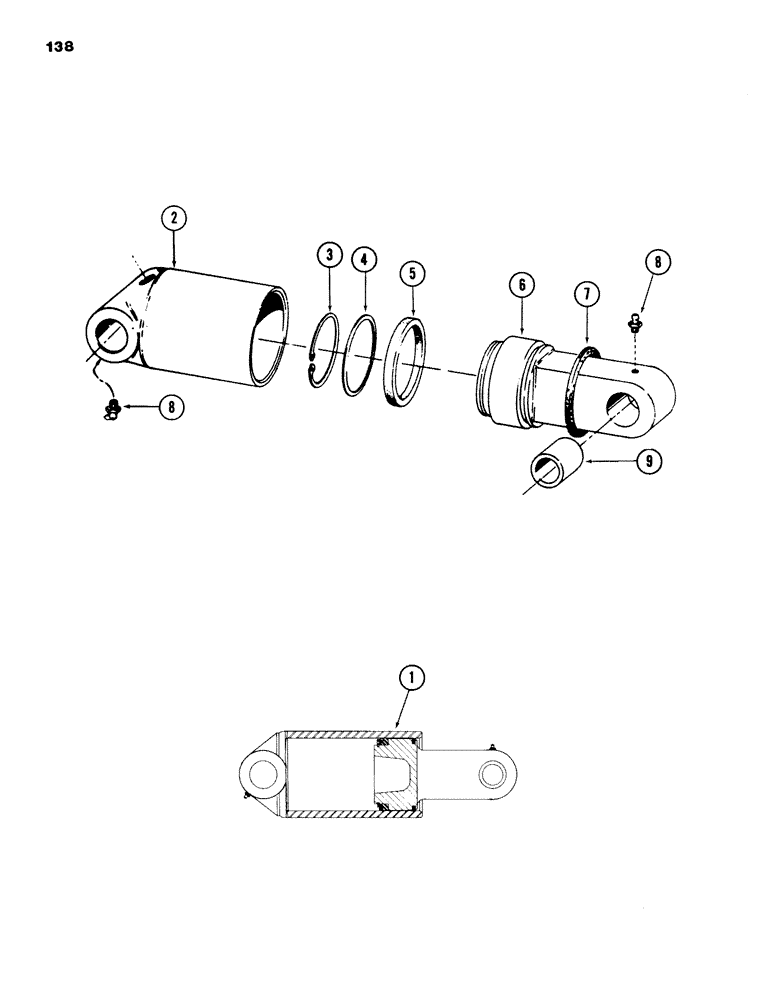

Запчасти Case 980B (138) - LEVELER CYLINDER, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S59819

CYLINDER

- leveler, Includes: Ref. 2 - 9

4шт.

2

S213924

TUBE - plain 1.25" OD x 13.92, 7.55" L

1шт.

3

S85699

SNAP RING,#425, Ext

Ring, Snap, #425, Ext

1шт.

4

S85707

WASHER

- retaining

1шт.

5

S85706

SEAL

- piston

1шт.

6

S503496

PISTON

ASSY

1шт.

7

S85705

SEAL

- wiper, piston

1шт.

8

218-55

FITTING - 1/8" PT x 90 degrees

2шт.

9

S85716

BUSHING

- piston

1шт.
