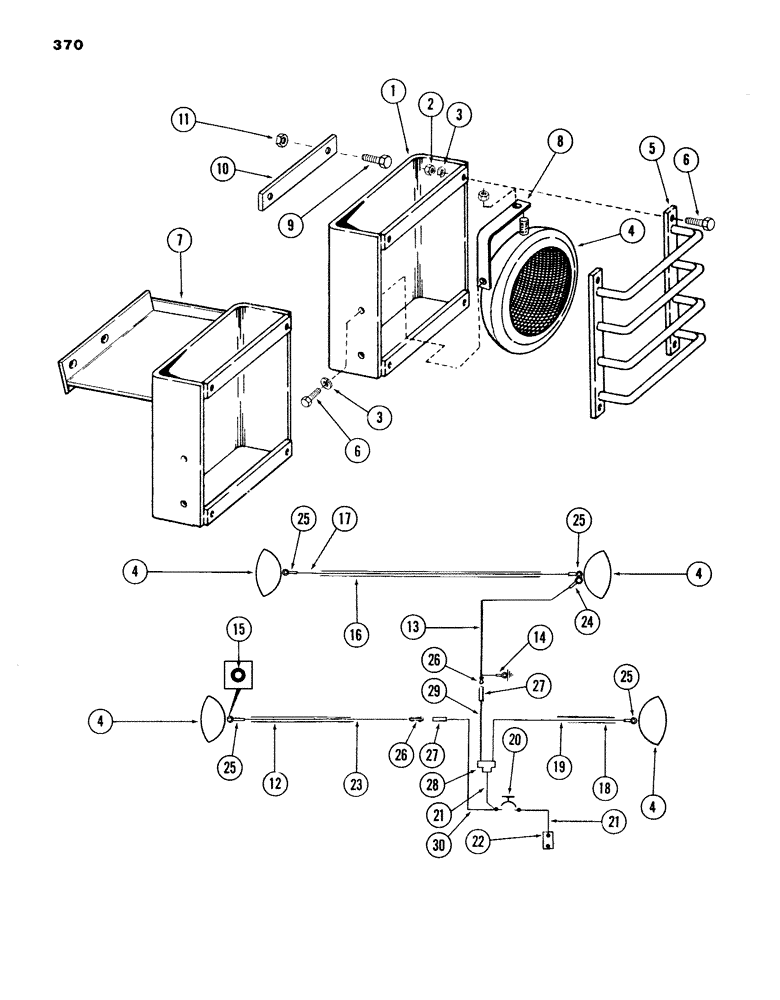

Запчасти Case 980B (370) - WORK LIGHTS AND ATTACHING PARTS, (USED ON UNITS PRIOR TO PIN 6204051) (06) - ELECTRICAL SYSTEMS

1

S212579

GUARD

housing

3шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

16шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

4

S203058

LIGHT

4шт.

5

S212578

PROTECTOR

GUARD, protector

4шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

24шт.

7

S513939

GUARD

- (mounts on top of cab)

1шт.

8

S222287

BRACKET

ASSEMBLY

4шт.

9

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" - 13 NC x 2-1/2" Gr 5

2шт.

10

S86493

SPACER

- (mounts between ref 1 and turntable)

1шт.

11

131-492

NUT,1/2"-13

NUT, self locking - 1/2" 13 NC

2шт.

12

S62256

LOOM

- (BULK) - 1 piece x 21" long

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - No. 10 gauge (2) conductor S.O. heavy duty - (1 piece x 40" long)

1шт.

14

223-54

TERMINAL CONNECTOR,10 - 12

TERMINAL, eyelet

1шт.

15

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- (in cab)

2шт.

16

NSS

NOT SOLD SEPARAT

LOOM - (BULK) - 1 piece x 32" long - (order M 20693 listed below)

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - No. 10 gauge plastic coated - (1 piece x 34" long)

1шт.

18

S62256

LOOM

- (BULK) 1 piece x 8" long

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - No. 10 gauge plastic coated - ( 1 piece x 76" long)

1шт.

20

S88636

IGNITION SWITCH

SWITCH, light

1шт.

21

S213795

ELECTRICAL WIRE

WIRE

2шт.

22

S231437

BREAKER

circuit

1шт.

23

NSS

NOT SOLD SEPARAT

WIRE - No. 10 gauge plastic coated - (1 piece x 190" long)

1шт.

24

223-57

TERMINAL , eyelet

1шт.

25

223-53

TERMINAL, eyelet

4шт.

26

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL, eyelet

3шт.

27

223-260

ELECTRICAL WIRE

TERMINAL, eyelet

2шт.

28

223-270

TERMINAL, eyelet

1шт.

29

S234166

CONNECTOR, 3 plug

1шт.

30

S234167

WIRE, jumper

1шт.
