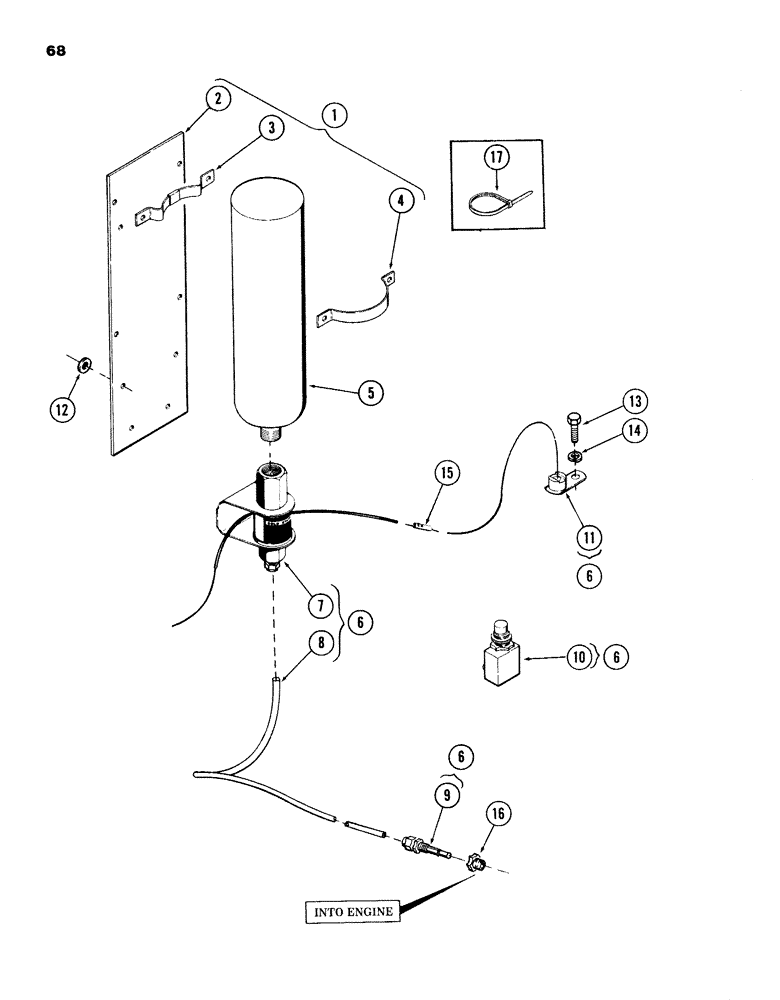

Запчасти Case 980B (068) - COLD WEATHER STARTING KIT (06) - ELECTRICAL SYSTEMS

S205216

THERMOSTART

KIT - cold weather starting, Includes: Ref. 1 - 11

1шт.

1

S116432

PLATE

- mounting assembly - (includes all required hardware), Includes: Ref. 2 - 4

1шт.

2

S116433

PLATE

1шт.

3

S116435

BRACKET - cylinder mount

2шт.

4

S116434

CLAMP

- cylinder

2шт.

5

S55767

CYLINDER - cold start refill

1шт.

6

S116436

KIT

- cold start accessary, Includes: Ref. 7 - 11

1шт.

7

S96079

VALVE

- cold start actuator

1шт.

L35283

PACKAGE, REPAIR

KIT - actuator

1шт.

8

L35281

TUBE,0.125" OD x 60" L

- nylon - 1/8" OD x 60"

1шт.

9

S116437

JET

ASSEMBLY

1шт.

10

S116439

SWITCH

- electric push button

1шт.

11

S116438

CASE

TERMOSTAT - circuit breaking

1шт.

12

195-102

WASHER,1/4"

- flat 5/16"

6шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8" NC hex x 3/8" (Grade 5)

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER - lock 1/2"

1шт.

15

223-250

ROD, CONNECTING

CONNECTOR - female electrical

1шт.

16

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - 1/4" PT x 1/8" PT

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.
