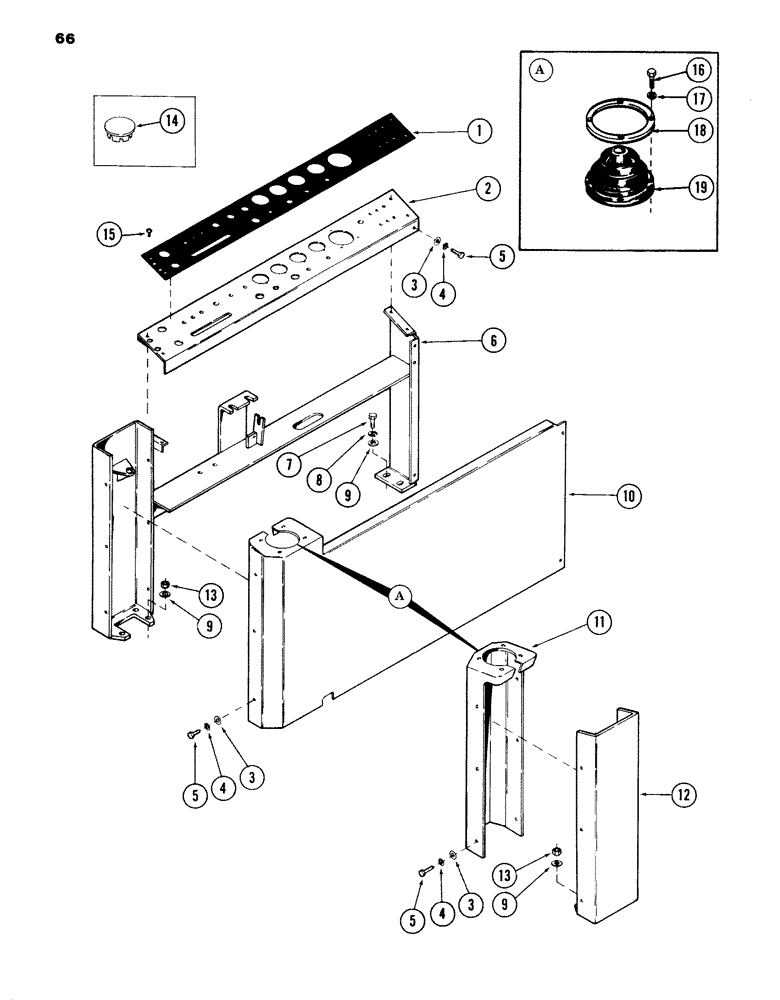

Запчасти Case 980B (066) - INSTRUMENT PANEL AND SUPPORTS FOR HAND CONTROL VALVES (06) - ELECTRICAL SYSTEMS

1

S610676

DECAL

- instrument panel - (used on units prior to PIN 6204051)

1шт.

S612986

DECAL

- instrument panel - (used on units with PIN 6504051 and after)

1шт.

2

S610602

PANEL - instrument - (used on units prior to PIN 6204051)

1шт.

S612985

PANEL - instrument - (used on units with PIN 6204051 and after)

1шт.

S614997

PANEL - instrument - (used on units with PIN 6204220 and after)

1шт.

3

195-101

WASHER,3/16"

- flat 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S613929

SUPPORT and FRAME - right control - (replaces S610657)

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

195-33

WASHER,1/2"

- flat 1/2"

10шт.

10

S610679

COVER - right control panel

1шт.

11

S610678

COVER - left control panel

1шт.

12

S513775

SUPPORT - left control - (Replaces S511068)

1шт.

13

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

8шт.

14

353-404

PLUG,Dome, .500" hole, Nylon

To plug hole in instrument panel when optional work lights are not used Dome, .500" hole, Nylon

2шт.

353-406

PLUG,Dome, .625" hole, Nylon

- hole - 5/8" dia. - (to plug hole in instrument panel when emergency shut-off or cold start is not used)

2шт.

15

187-1812

SCREW - No. 6 x 1/4" NF self tapping

10шт.

16

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- No. 10 x 5/8" NF machine

8шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

18

S108804

RING

- mounting

2шт.

19

S232150

BOOT

- rubber

2шт.
