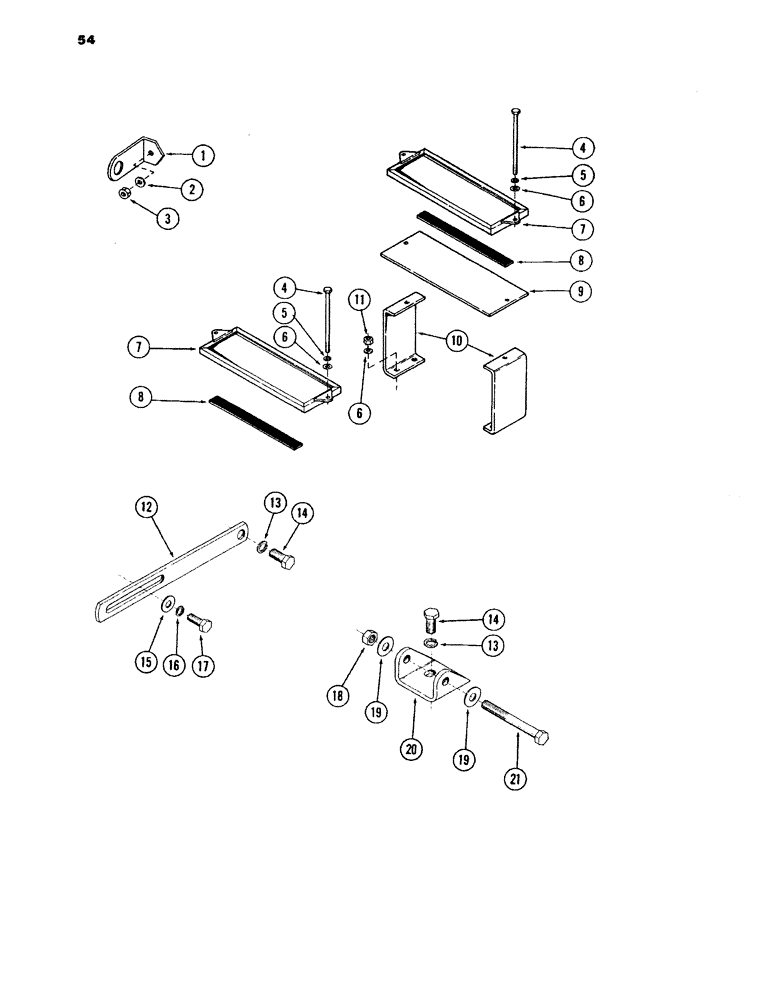

Запчасти Case 980B (054) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (USED ON UNITS KPRIOR TO PIN 6204051) (06) - ELECTRICAL SYSTEMS

1

S203190

BRACKET

BRACKET, horn

1шт.

2

195-530

WASHER,7/16"

WASHER, flat - 3/8

1шт.

3

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

4

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

4шт.

5

192-23

LOCK WASHER,1/2"

4шт.

6

S95569

WASHER

WASHER, flat - 1/2"

8шт.

7

S507587

BRACKET

BRACKET, battery hold down

2шт.

8

S223590

SPARE PART STRIP, rubber - (under battery)

4шт.

9

S231402

SPARE PART PLATE - (used with upper battery)

1шт.

10

S231403

SPARE PART BRACKET, support - (used with upper battery)

2шт.

11

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

12

A59098

STRAP

STRAP, alternative adjusting

1шт.

13

192-21

LOCK WASHER,3/8"

3шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Strap and bracket to engine

3шт.

15

195-102

WASHER,1/4"

flat - 5/16"

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Strap to alternator

1шт.

18

131-463

NUT,3/8"-16

1шт.

19

195-525

WASHER,3/8", SAE

WASHER, flat - 7/16"

2шт.

20

A160391

BRACKET

BRACKET, alternator mounting

1шт.

21

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Alternator to bracket

1шт.
