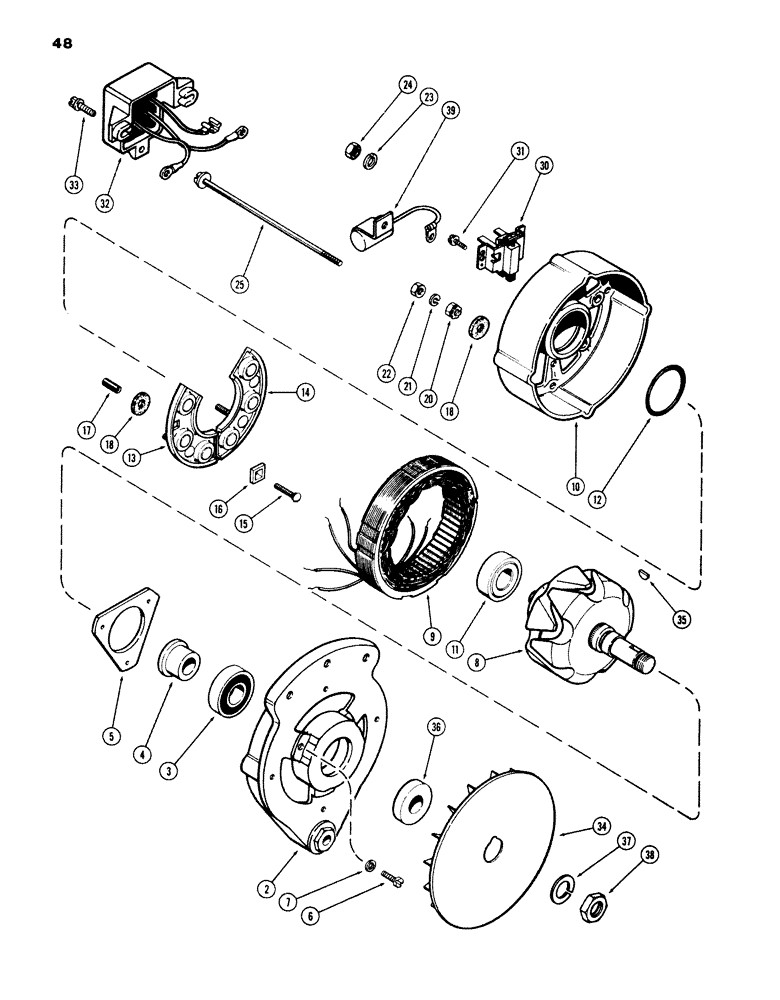

Запчасти Case 980B (048) - S229619 ALTERNATOR, (504BDT DIESEL ENGINE), (USED ON UNITS PRIOR TO PIN 6204051) (06) - ELECTRICAL SYSTEMS

S229619

ALTERNATOR

ASSY. - (Motorola #8HR2002L) - (for service order kit no. S612874 which consists of a S512737 alternator and a S113717 installation kit), Includes: Ref. 2 - 39

1шт.

2

A44774

HOUSING

- front

1шт.

3

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - housing, front (1 x 2 x 9/16")

1шт.

4

A41052

SLEEVE

- bearing pilot

1шт.

5

A43280

RETAINER

- front bearing

1шт.

6

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- front retainer, #8-32 x 3/8" mach

3шт.

7

192-146

WASHER - lock, #8

3шт.

8

A45029

ROTOR - w/slip ring

1шт.

9

A45029

STATOR

1шт.

10

A45026

HOUSING

- rear

1шт.

11

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - housing, rear

1шт.

12

A43402

RETAINER

- alt, rear bearing

1шт.

13

A45033

DIODE ASSY. - negative

1шт.

14

A47607

DIODE

ASSY. - positive

1шт.

15

A41436

SCREW

STUD - #10 x 1-1/2" N.C. carr. hd

1шт.

16

A41041

INSULATOR

- diode stud

1шт.

17

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2"

1шт.

17

A44782

INSULATOR

SLEEVE - insulator, 3/16 x 1/4 x 3/8"

2шт.

18

A43292

WASHER

- insulating, 13/64 x 1/2 x 1/16"

2шт.

18

A41038

WASHER

- insulating, 3/16 x 3/4 x 1/16"

4шт.

20

A41060

LOCK NUT

NUT - #10-24 hex, w/skpf. washer

2шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

22

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

24

129-121

NUT,1/4"-28, G5

1шт.

25

A45030

BOLT

- thru, #10 N.F. x 3-5/16" hex

4шт.

30

A43401

BRUSH ASSY.

BRUSH ASSY - w/holder

1шт.

31

187-480

SCREW,Hex Hd, #8 x 1/2"

- brush holder, #8-32 x 1/2" sltd. hex

2шт.

32

A44772

REGULATOR

ASSY. - voltage

1шт.

33

187-156

SCREW - #10-24 x 3/8" hex. sltd. hd. tapping

1шт.

33

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - #10-24 x 5/8" hex. sltd. hd. tapping (brass)

2шт.

34

A42431

FAN

- ventilating

1шт.

35

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Fan #5, 1/8" x 5/8", HT

1шт.

36

A42432

SPACER

- fan, 5/8 x 1-3/8 x 11/32"

1шт.

37

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

38

A41035

NUT

- fan, 5/8 N.F. hex

1шт.

39

A44770

TANK

CAPACITOR - (Condenser)

1шт.

THIS ALTERNATOR ASSY IS FOR 62 AMP FOR 72 AMP GO TO FIGURE 58 (ref #1).

1шт.
