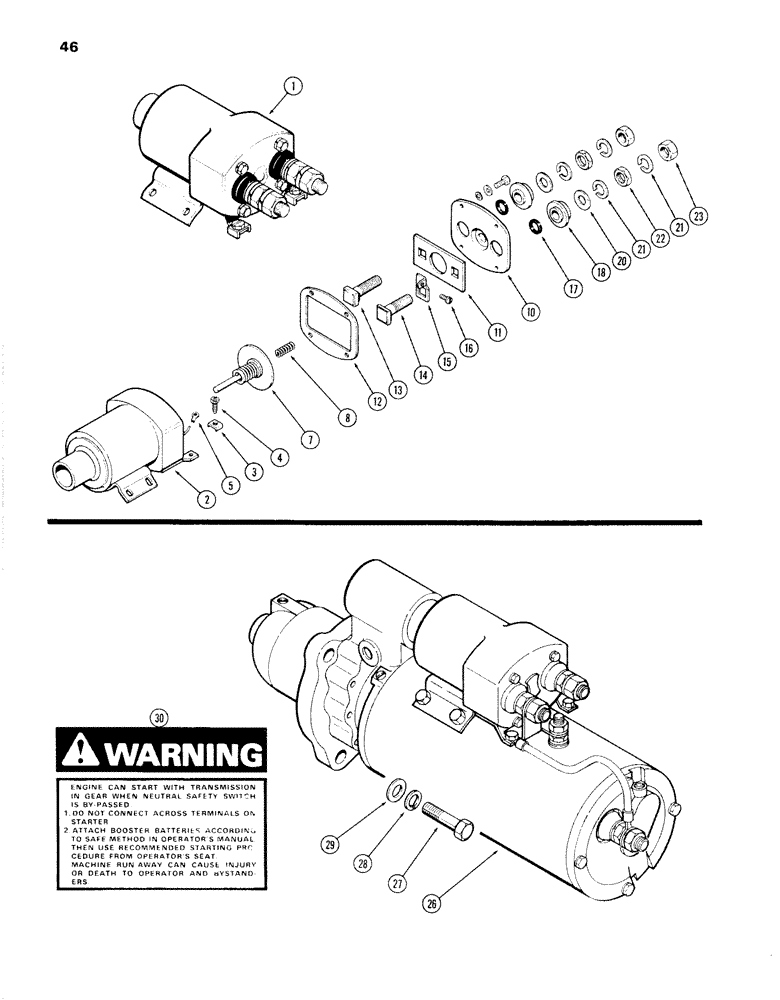

Запчасти Case 980B (046) - A42376 SOLENOID (06) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSY - (Delco-Remy #1119848), Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

1шт.

5

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

D32498

CONTACT

ASSY

1шт.

8

A42411

VALVE SPRING

SPRING - contact return

1шт.

A42412

PLATE

ASSY - terminal, Includes: Ref. 10 - 23

1шт.

10

A42410

PLATE

- terminals

1шт.

11

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

12

A42260

GASKET

- terminal plate

1шт.

13

A42413

STUD

TERMINAL - battery, 1/2" NC with 21/32" (16.67mm) thread length

1шт.

14

D32506

STUD

TERMINAL - starter, 1/2" NC with 1-3/16" (30.16mm) thread length

1шт.

15

D29910

SUPPORT

- coil lead

1шт.

16

175-56

SCREW - coil lead, #6-32 x 3/16" truss head Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal insulating, 1/2 x 11/16 x 3/32" rubber (12.7 x 17.46 x 2.38mm)

2шт.

18

A42409

BUSHING

INSULATOR - terminals (Order A43701 package)

2шт.

20

D30006

WASHER

- 1/2 x 7/8 x 1/32" (12.7 x 22.23 x 0.79mm)

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

4шт.

22

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

26

R26137

STARTER MOTOR

STARTER ASSY - (See Figures 42 and 44), mounting

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Starter to block, mounting Hex, 1/2"-13 x 2", G5

2шт.

27

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Starter to block, mounting Hex, 1/2"-13 x 3 1/4", G5

1шт.

28

92-8

LOCK WASHER,1/2"

starter mounting 1/2"

3шт.

29

L30674

WASHER

- 1/2 x 1 x 1/8", starter mounting

3шт.

30

321-3709

DECAL

- Warning, starter mounting

1шт.
