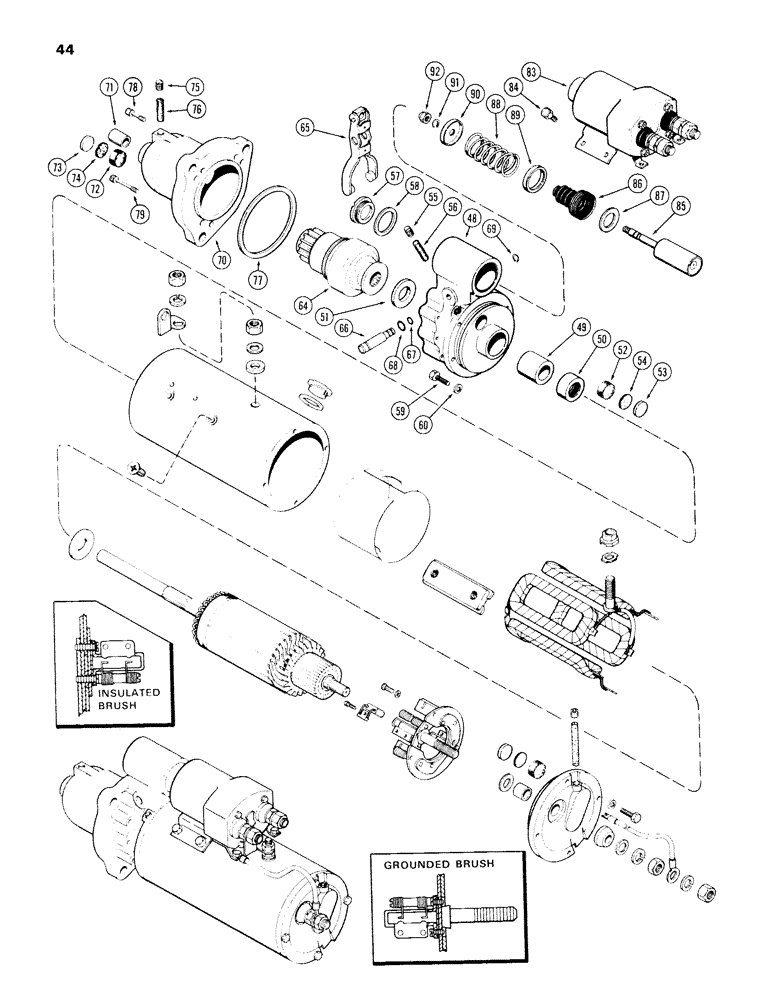

Запчасти Case 980B (044) - R26137 STARTER (06) - ELECTRICAL SYSTEMS

R26137

STARTER MOTOR

STARTER ASSY - (continued from Figure 43), Includes: Ref. 48 - 92

1шт.

48

R21579

HOUSING

ASSY - shift lever, Includes: Ref. 49 - 56

1шт.

49

R21580

BUSHING

- 13/16 x 1 x 1-1/4" (20.64 x 25.4 x 31.75mm)

1шт.

50

R21582

OIL SEAL

- oil, 13/16 x 1-3/8 x 3/8" (20.64 x 34.93 x 9.53mm)

1шт.

51

R15145

DISC

WASHER - brake, starter drive, 7/8 x 1-7/8 x 3/16" (22.23 x 47.63 x 4.16mm)

1шт.

52

A41923

PLUG

- oil reservoir (felt)

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole, 1-1/32" expansion (26.19mm)

1шт.

54

A41973

GASKET

- expansion plug

1шт.

55

221-1041

PLUG

- oil wick hole

1шт.

56

R15023

WICK

- oil

1шт.

57

R15023

WICK

PLUG - shift lever housing

1шт.

58

A41924

GASKET

- housing plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

64

A47073

DRIVE

ASSY - starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

STUD - pivot, shifter lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

- pivot stud, 1/4 x 3/8 x 1/16" (6.35 x 9.53 x 1.59mm)

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

- pivot stud, 3/8 x 1/2 x 1/16" (9.53 x 12.7 x 1.59mm)

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot stud retaining #37, Ext

1шт.

70

A44168

HOUSING

ASSY - drive end, Includes: Ref. 71 - 76

1шт.

71

A40893

BUSHING

- armature pilot, 5/8 x 3/4 x 3/4(15.88 x 19.05 x 19.05mm)

1шт.

72

A41923

PLUG

- oil reservoir (felt)

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole, 1-1/32" expansion (26.19mm)

1шт.

74

A41973

GASKET

- expansion plug

1шт.

75

221-1041

PLUG

- oil wick hole

1шт.

76

R15023

WICK

- oil

1шт.

77

R21562

GASKET

- drive housing to shifter lever housing, 3-1/8 x 3-1/2 x 1/16" (79.38 x 88.9 x 1.59mm)

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing, 5/16 x 7/8" NC, socket head

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end housing, 5/16 x 1-1/2" NC, socket head

5шт.

83

A42376

SWITCH

SOLENOID ASSY - (See Figure 46)

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting, 1/4 x 3/8" NC hex

4шт.

85

A42309

PLUNGER

- solenoid core

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

SEAT - boot, 7/8 x 1-3/8 x 1/16" (22.23 x 34.93 x 1.59mm)

1шт.

88

A41242

SPRING

- plunger return

1шт.

89

A43380

BACK-UP RING

SEAT - spring, with 1-1/4" hole (31.75mm)

1шт.

90

A43419

SEAT

- spring, with 3/8" hole (9.53mm)

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retaining #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to shift lever

1шт.
