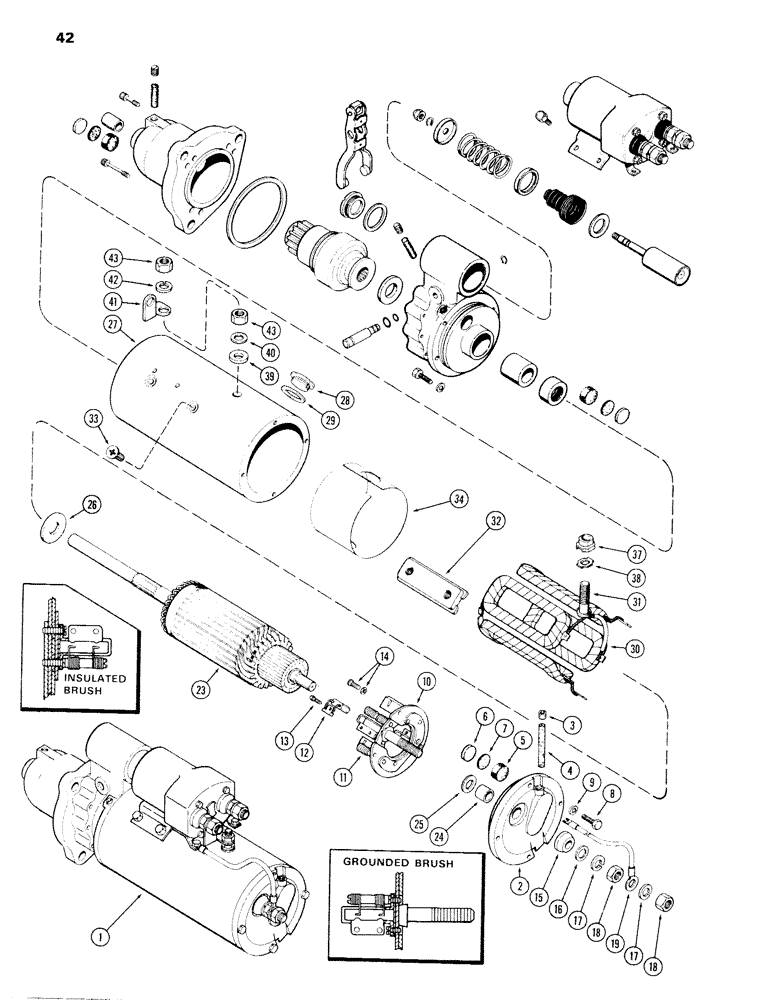

Запчасти Case 980B (042) - R26137 STARTER (06) - ELECTRICAL SYSTEMS

1

R26137

STARTER MOTOR

STARTER ASSY - (Delco-Remy #1113998), Includes: Ref. 2 - 43

1шт.

2

A40897

FRAME

ASSY - commutator end, Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir (felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole, 1-1/32" expansion (26.19mm)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end frame Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

ASSY - brush holder, without brushes, Includes: Ref. 11

1шт.

11

A25393

SPRING

- brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush attaching, #8-32 x 5/16" round head

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

ASSY - mounting plate

3шт.

15

A43701

BUSHING

- terminal stud insulating

1шт.

16

D30006

WASHER

- terminal stud, 1/2 x 7/8 x 1/32" (12.7 x 22.23 x 0.79mm)

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - terminal stud, lock 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal stud 1/2"-13, G5

2шт.

19

A41979

WICK

WIRE - terminal, Serial Range: stud-solenoid

1шт.

23

A41458

ARMATURE

1шт.

24

A42323

BUSHING

- armature pilot (in commutator end)

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, armature (at commutator end) 9/16 x 1 x 1/16" (14.29 x 25.4 x 1.59mm)

1шт.

26

A40892

WASHER

- thrust, armature (at lever housing) 13/16 x 1-3/4 x 3/16" (20.64 x 44.45 x 4.76mm)

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

- brush inspection

2шт.

29

A41924

GASKET

- inspection plug

2шт.

30

A41590

COIL

ASSY - field, Includes: Ref. 31

1шт.

31

A40896

STUD

- field terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes, 3/18 x 5/8" NC Phillips head

8шт.

34

A44169

INSULATOR

INSULATION - coil

1шт.

A41925

BUSHING

ASSY - field coil stud insulation, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - inner stud insulator

1шт.

39

D30005

INSULATOR

- field coil stud, outer, 1/2 x 1 x 3/32" (12.7 x 25.4 x 2.38mm)

1шт.

40

D30006

WASHER

- field coil stud, 1/2 x 7/8 x 1/32" (12.7 x 22.23 x 0.79mm)

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
