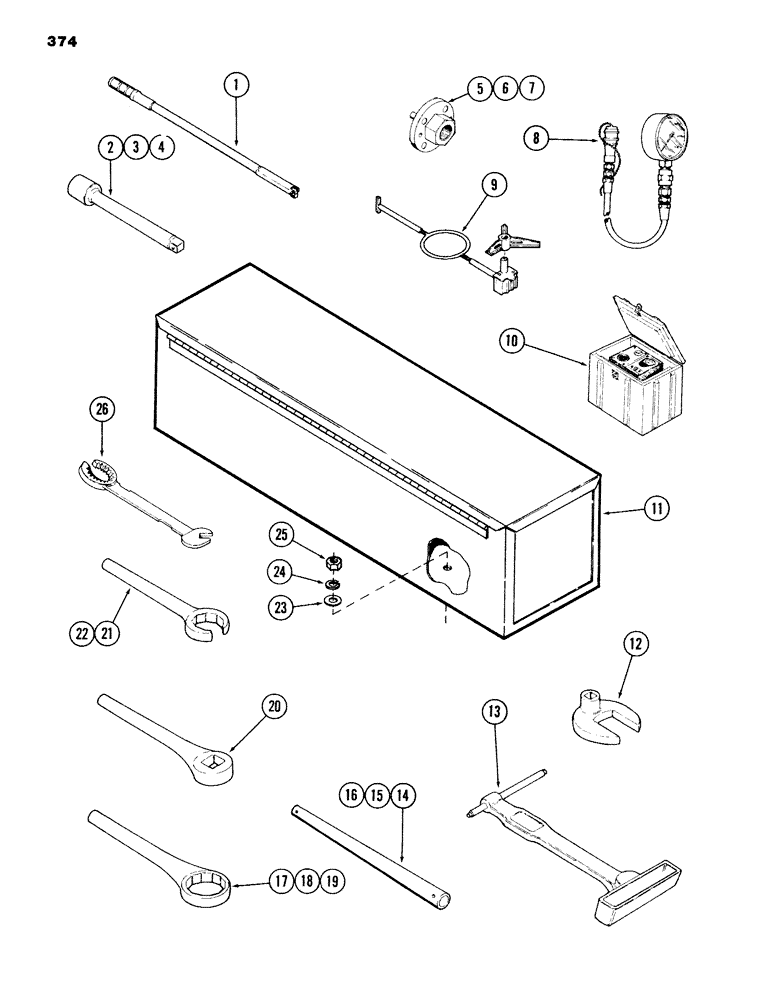

Запчасти Case 980B (374) - TOOL BOX AND WRENCHES (05) - UPPERSTRUCTURE CHASSIS

1

CAS10037

TOOL

WRENCH, torque - (600 ft/lbs)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

2

CAS1513

TOOL

BAR, extension - (vertical 5" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

3

CAS1512

TOOL

BAR, extension - (vertical 8" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

4

CAS1511

TOOL

BAR, extension - (vertical 16" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

5

CAS1255

TOOL KIT

WRENCH, spanner - (used with hoist cylinder)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

6

CAS1259

TOOL KIT

WRENCH, spanner - (used with tool cylinder)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

7

CAS1256

TOOL KIT

WRENCH, spanner - (used with crowd cylinder)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

8

CAS1537

TOOL KIT

KIT, pressure gauge

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

9

CAS1543

TOOL

FIXTURE, bearing alignment

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

10

S605647

METER

KIT - flowmeter

1шт.

11

A59844

BOX, TOOL

1шт.

12

CAS1121

TOOL KIT

WRENCH, crow foot - (2" long), DISCONTINUE

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

13

S204646

TOOL, bucket tip

1шт.

14

CAS1507

TOOL

TUBE - extension - (horizontal 15" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

15

CAS1508

TOOL

TUBE, extension - (horizontal 18" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

16

CAS1425

TOOL KIT

TUBE, extension - (horizontal 201/2" long)

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

17

CAS1189

TOOL

WRENCH, box - 15/16"

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

18

CAS1189

TOOL

WRENCH, box - 1-1/8", DISCONTINUE - TYPE 6

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

198

CAS1200

TOOL

WRENCH, box 1-5/16"

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

20

CAS1424

TOOL

ADAPTER

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

21

CAS1254

TOOL

WRENCH, flare nut (1-1/4")

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

22

CAS1291

TOOL KIT

WRENCH, flare nut (1-1/2"), DISCONTINUE - TYPE 6

1шт.

TOOL CATALOG NUMBERS WITH THE PREFIX CAS SHOULD BE ORDERED DIRECTLY FROM SERVICE TOOLS DIV., OWATONNA, MINN. 55060.

1шт.

23

195-530

WASHER,7/16"

flat - 1/2"

4шт.

24

195-101

WASHER,3/16"

flat - 1/4"

4шт.

25

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

4шт.

26

S110621

WRENCH, 2" combination - open end and box

1шт.
