(366) - DECALS, (USED ON UNITS WITH PIN 6204051 AND AFTER

Запчасти Case 980B (366) - DECALS, (USED ON UNITS WITH PIN 6204051 AND AFTER (05) - UPPERSTRUCTURE CHASSIS

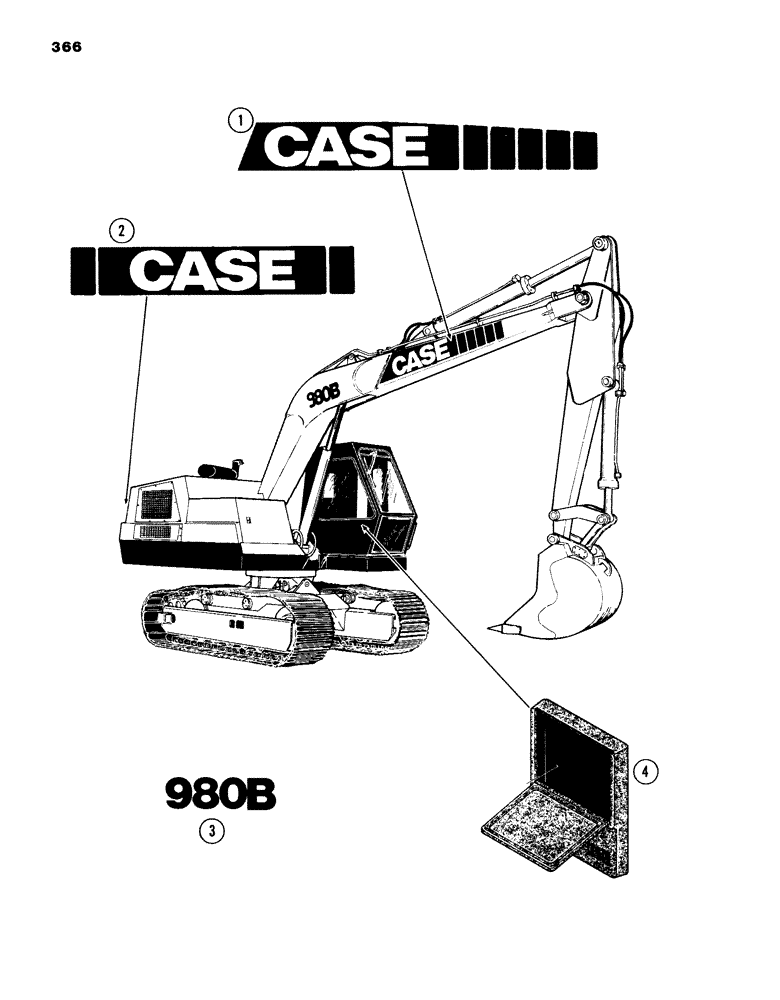

Схема запчастей Case 980B - (366) - DECALS, (USED ON UNITS WITH PIN 6204051 AND AFTER (05) - UPPERSTRUCTURE CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

321-5054

DECAL

- (CASE) - (RIGHT HAND)

1шт.

321-5055

DECAL

- (CASE) - (LEFT HAND)

1шт.

2

321-5056

DECAL

- (CASE) - rear

1шт.

3

S955185

DECAL

- model number

2шт.

4

S511692

BOX

operator's manual

1шт.

S109782

RIVET

- pop

2шт.

A141917

ROPE

CORD

1шт.
