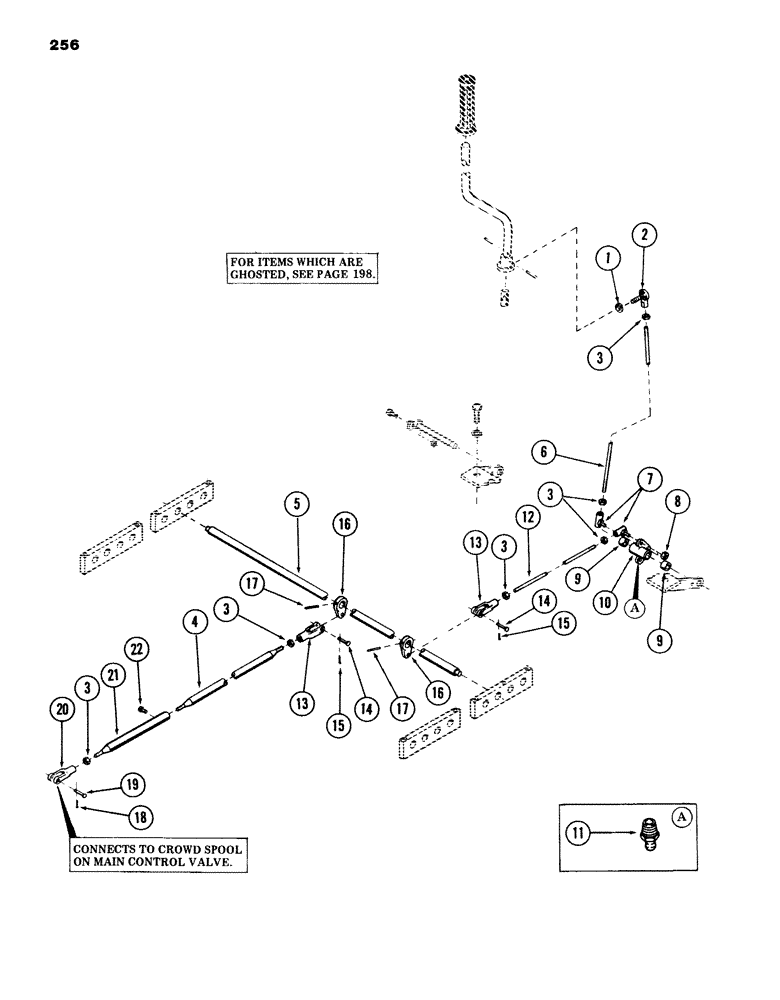

Запчасти Case 980B (256) - CROWD CONTROL HANDLE AND ATTACHING PARTS, (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

S236680

BALL JOINT

BALLJOINT

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam 3/8" NF

6шт.

4

S229509

ROD

- connecting

1шт.

5

S229885

SHAFT

1шт.

6

S98159

STUD

1шт.

7

S215594

BALL

JOINT

2шт.

8

231-2446

NUT,3/8"-24, GB

NUT - lock 3/8" NC

2шт.

9

A30586

NEEDLE BEARING

BEARING - needle

2шт.

10

S213376

BELLCRANK, Includes: Ref. 11

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

12

S87920

ROD

- connecting

1шт.

13

S66383

YOKE

2шт.

14

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

2шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

16

S237342

LEVER

2шт.

17

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

18

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

19

S10767

PIN

- clevis 3/8" x .891" grip length

1шт.

20

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

21

S229518

ROD

- connecting

1шт.

22

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - 1/4" x 3/8" NC set

1шт.
