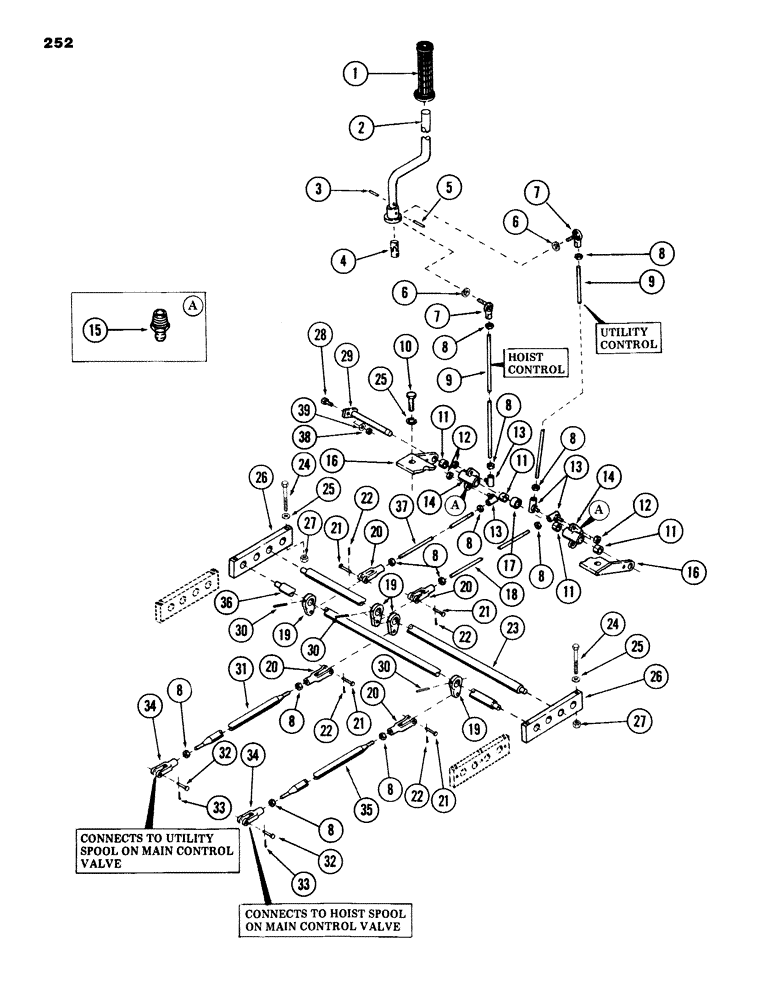

Запчасти Case 980B (252) - CONTROL HANDLE & ATTACHING PARTS FOR:,HOIST & UTILITY CONTROL,(USED ON UNITS W/ PIN 6204051 & AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S116544

GRIP

- handle - (Replaces S115723)

1шт.

2

S513190

HANDLE

- hoist and utility control

1шт.

3

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

Rubber boot for under ref #3 is P/N S232150.

1шт.

4

S234960

YOKE

JOINT - universal

1шт.

5

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

S236680

BALL JOINT

BALLJOINT

2шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam - 3/8" NF

12шт.

9

S98159

STUD

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

11

A30586

NEEDLE BEARING

BEARING - needle

8шт.

12

231-2446

NUT,3/8"-24, GB

NUT - 3/8" NC

4шт.

13

S215594

BALL

JOINT

4шт.

14

S231376

ARM ASSY.

BELLCRANK, Includes: Ref. 15

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

16

S235783

SUPPORT - bellcrank

1шт.

17

S108060

SPACER

1шт.

18

S99321

ROD - connecting

1шт.

19

S238342

LEVER

4шт.

20

S66383

YOKE

4шт.

21

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

4шт.

22

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

23

S237782

SHAFT

1шт.

24

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

25

195-21

WASHER,5/16"

- flat 7/16"

4шт.

26

S512159

SUPPORT

BAR - bearing support

2шт.

27

131-52

NUT,3/8"-16, GC

NUT - lock - 3/8" NC

4шт.

28

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

29

S231378

PIN

SHAFT

1шт.

30

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

31

S222941

ROD

- connecting

1шт.

32

S10767

PIN

ROD - clevis - 3/8" x .891" grip length

2шт.

33

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

34

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

35

S220638

ROD

- connecting

1шт.

36

S229881

SHAFT

1шт.

37

S223839

ROD - connecting

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - self locking 1/4" NC

1шт.

39

195-41

WASHER,5/8"

- flat 1/4"

2шт.
