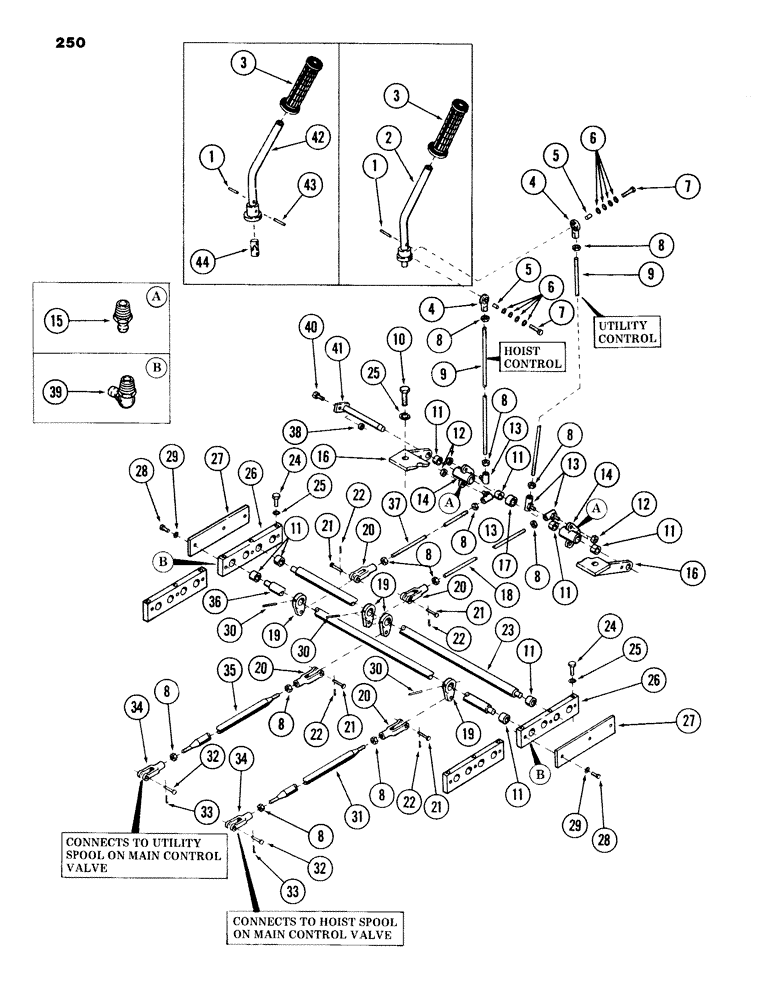

Запчасти Case 980B (250) - CONTROL HANDLE & ATTACHING PARTS FOR:,HOIST & UTILITY CONTROL, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (Replaces 138-134) 1/4" x 1 1/2", Slotted

1шт.

2

S512410

HANDLED SHAFT

HANGLE, hoist and utility control - (used on units prior to PIN 6203856) - (Replaces S511066)

1шт.

3

S109220

GRIP

handle - (Replaces S109220)

1шт.

4

A32398

BALL JOINT

BALLJOINT - (Replaces S108030)

2шт.

5

S108042

SPACER

2шт.

6

S108041

SPACER

8шт.

7

114-21

CPSW - 1/4" - 28 NF x 1-1/2" Gr 8 Locking, 1/4"-28 x 1 1/2", G8

2шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

12шт.

9

S108056

STUD

2шт.

10

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3шт.

11

A30586

NEEDLE BEARING

BEARING, needle

8шт.

12

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" - 24 NC

4шт.

13

S215594

BALL

JOINT

4шт.

14

S231376

ARM ASSY.

BELLCRANK, Includes: Ref. 15

2шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (straight)

2шт.

16

S231373

SUPPORT, bellcrank

1шт.

17

S108060

SPACER

1шт.

18

S80385

ROD

connecting

1шт.

19

S237342

LEVER

- (Replaces S229872)

4шт.

20

S66383

YOKE

4шт.

21

S105940

PIN,11.02mm OD x 22.23mm L

clevis

4шт.

22

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

23

S229879

SHAFT

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CPSW - 1/4" - 20 NC x 1" Gr 5

6шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

26

S511030

BAR, bearing support

2шт.

27

S231268

PLATE, bearing cover

2шт.

28

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

30

138-40

PIN, roll

4шт.

31

S222941

ROD

connecting

1шт.

32

S10767

PIN

clevis - 3/8" x .891" grip length

2шт.

33

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

34

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

35

S220638

ROD

connecting

1шт.

36

S229881

SHAFT

1шт.

37

S223839

ROD, connecting

1шт.

38

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

39

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 90 degrees

8шт.

40

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

41

S231378

PIN

SHAFT

1шт.

42

S512410

HANDLED SHAFT

HANDLE, hoist and utility control - (used on units with PIN 6203856 and after)

1шт.

43

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Used on units with PIN 6203856 and after 1/4" x 1 1/2", Slotted

1шт.

44

S234960

YOKE

JOINT, universal - (used on units with PIN 6203856 and after)

1шт.
