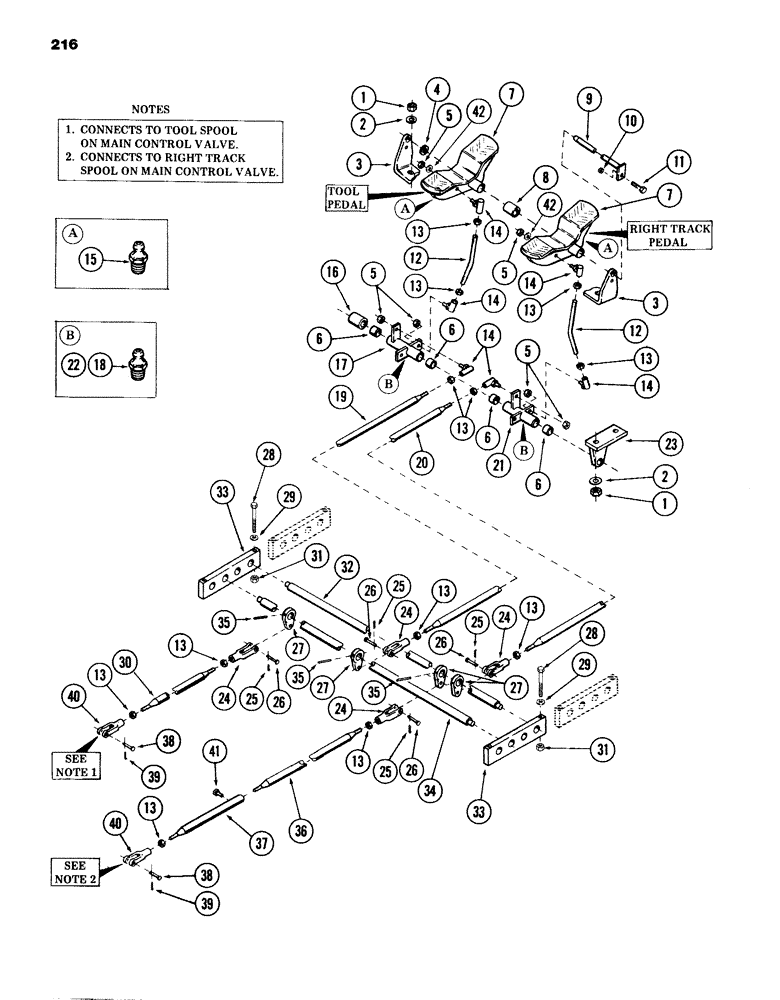

Запчасти Case 980B (216) - PEDALS AND ATTACHING PARTS FOR:, RIGHT TRACK AND TOOL CONTROL,(USED ON UNITS WITH PIN 6204051 & AFT) (05) - UPPERSTRUCTURE CHASSIS

1

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S232225

BRACKET - foot pedal mounting

1шт.

4

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

5

131-493

NUT

- lock 3/8" NF

6шт.

6

A30586

NEEDLE BEARING

BEARING - needle

4шт.

7

S511074

PEDAL

2шт.

8

S6465

SPACER

1шт.

9

S218965

SHAFT ASSY.

SHAFT

1шт.

10

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC

1шт.

11

113-71

BOLT,Hex, 1/4" - 20 x 4-1/4", Gr 5

- 1/4" x 1" NC (Grade 5)

1шт.

12

S233256

ROD - connecting

2шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam 3/8" NF

10шт.

14

S215594

BALL

JOINT

6шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

16

S110843

TUBE

SPACER

1шт.

17

S229402

ARM ASSY.

BELLCRANK, Includes: Ref. 18

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

19

S220638

ROD

- connecting

1шт.

20

S229407

ROD

- connecting

1шт.

21

S229403

ARM ASSY.

BELLCRANK, Includes: Ref. 22

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

23

S235782

BRACKET

- bellcrank support

1шт.

24

S66383

YOKE

4шт.

25

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

26

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

4шт.

27

S237342

LEVER

4шт.

28

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

29

195-525

WASHER,3/8", SAE

- flat 7/16"

4шт.

30

S229411

ROD

- connecting

1шт.

31

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

4шт.

32

S229918

SHAFT

1шт.

33

S512159

SUPPORT

BAR - bearing support

2шт.

34

S229917

SHAFT

1шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S229408

ROD

- connecting

1шт.

37

S229518

ROD

- connecting

1шт.

38

S10767

PIN

- clevis 3/8" x .891" grip length

2шт.

39

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

40

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

41

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set 1/4" x 3/8" NC

1шт.

42

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.
