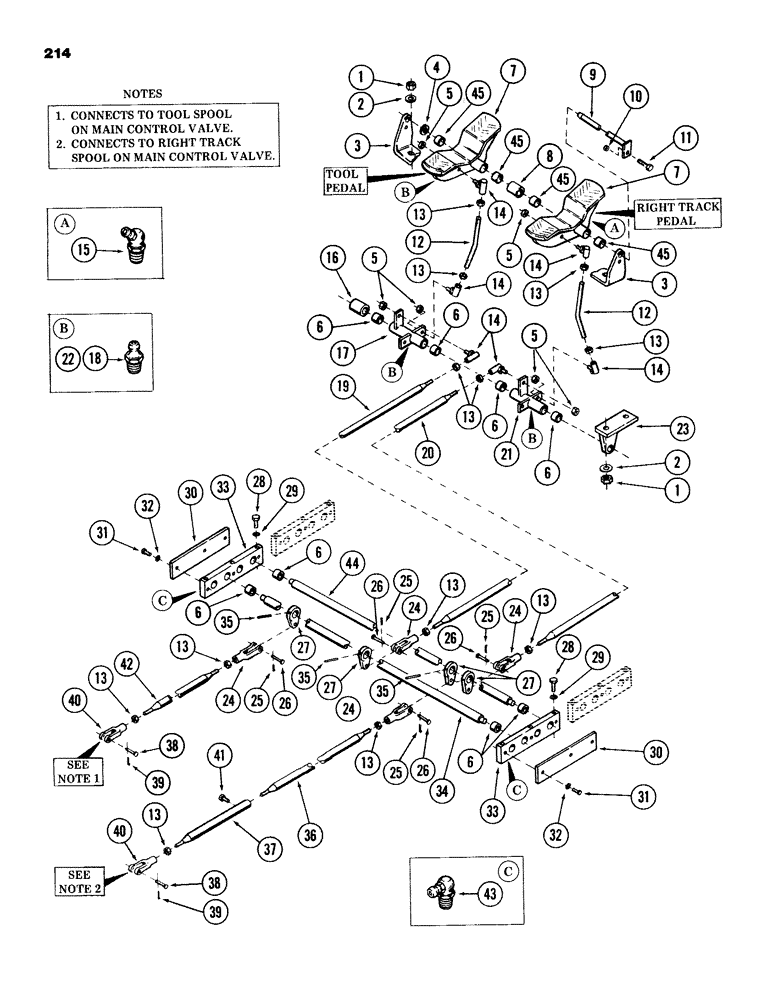

Запчасти Case 980B (214) - PEDALS AND ATTACHING PARTS FOR:, RIGHT TRACK AND TOOL CONTROL, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET, foot pedal mounting

1шт.

4

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

5

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" - 24 NC

6шт.

6

A30586

NEEDLE BEARING

BEARING, needle

8шт.

7

S511074

PEDAL

2шт.

8

S64465

SPACER

1шт.

9

S218965

SHAFT ASSY.

SHAFT

1шт.

10

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12

S229404

ROD

connecting

2шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

10шт.

14

S215594

BALL

JOINT

6шт.

15

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 65 degrees

1шт.

16

S75706

SPACER

1шт.

17

S229402

ARM ASSY.

BELLCRANK, Includes: Ref. 18

1шт.

18

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lub - 1/4" NPT - (straight)

1шт.

19

S220638

ROD

connecting

1шт.

20

S229407

ROD

connecting

1шт.

21

S229403

ARM ASSY.

BELLCRANK, Includes: Ref. 22

1шт.

22

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube 1/4" NPT (straight)

1шт.

23

S229382

BRACKET, bellcrank support

1шт.

24

S66383

YOKE

4шт.

25

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

26

S105940

PIN,11.02mm OD x 22.23mm L

clevis

4шт.

27

S237342

LEVER

- (Replaces S229872)

4шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CPSW - 3/8" - 16 NC x 1" Gr 5

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

30

S231268

PLATE, bearing cover

2шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

33

S511030

BAR, bearing support

2шт.

34

S229917

SHAFT

1шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S229408

ROD

connecting

1шт.

37

S229518

ROD

connecting

1шт.

38

S10767

PIN

clevis - 3/8" x .891" grip length

2шт.

39

132-69

COTTER PIN,5/32" x 1"

PIN, cotter - 5/32" x 3/4" long

2шт.

40

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

41

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

42

S229411

ROD

connecting

1шт.

43

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 90 degrees

8шт.

44

S229918

SHAFT

1шт.

45

A30586

NEEDLE BEARING

BEARING, needle - (used on units prior to PIN 6203871)

4шт.
