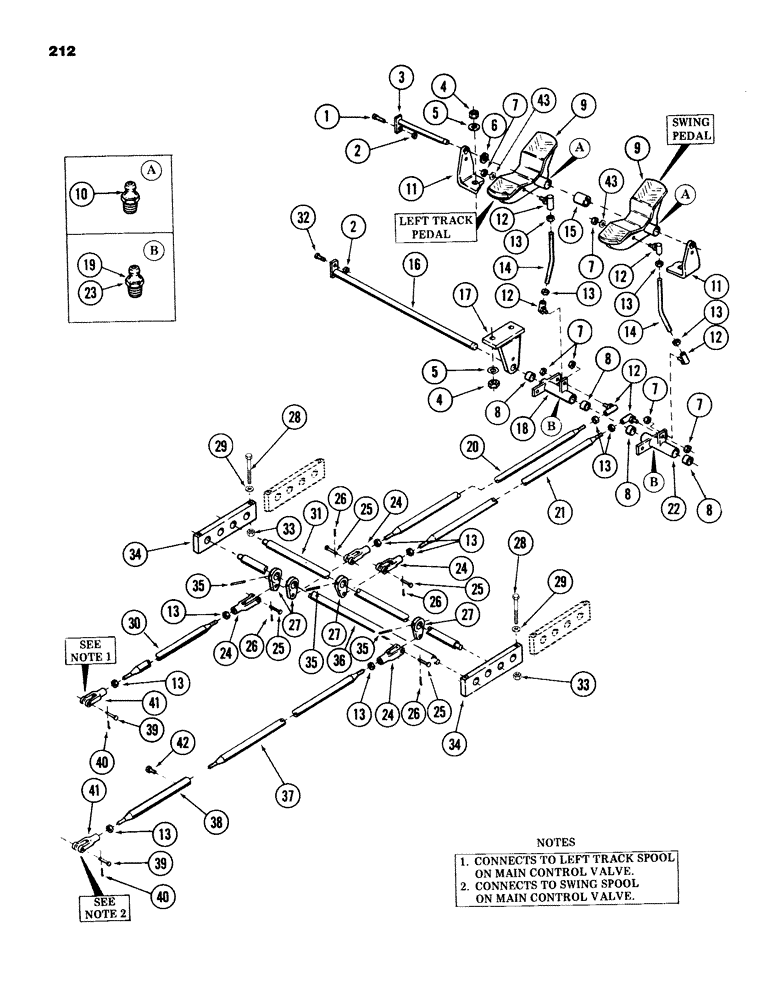

Запчасти Case 980B (212) - PEDALS AND ATTACHING PARTS FOR:, LEFT TRACK AND SWING CONTROL,(USED ON UNITS WITH PIN 6204051 & AFT) (05) - UPPERSTRUCTURE CHASSIS

1

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

2

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC

2шт.

3

S218965

SHAFT ASSY.

SHAFT

1шт.

4

86625061

NUT,1/4"-20, GB

NUT- lock 1/2" NC

4шт.

5

95-8

WASHER,1/2"

flat 1/2"

4шт.

6

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

7

195-41

WASHER,5/8"

NUT - self locking 3/8" NF

6шт.

8

A30586

NEEDLE BEARING

BEARING - needle

4шт.

9

S511074

PEDAL

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

11

S232225

BRACLET - foot pedal mounting

2шт.

12

S215594

BALL

JOINT

6шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam 3/8" NF

12шт.

14

S233256

ROD - connecting

2шт.

15

S64465

SPACER

2шт.

16

S229383

PIN ASSY.

SHAFT

1шт.

17

S235782

BRACKET

- bellcrank support

2шт.

18

S229400

BELLCRANK - bellcrank support, Includes: Ref. 19

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

20

S229509

ROD

connecting

1шт.

21

S229409

ROD, connecting

1шт.

22

S229401

BELLCRANK, Includes: Ref. 23

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

24

S66383

YOKE

4шт.

25

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

4шт.

26

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

27

S237342

LEVER

4шт.

28

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

29

195-525

WASHER,3/8", SAE

- flat 7/16"

4шт.

30

S229413

ROD

- connecting

1шт.

31

S229916

SHAFT

1шт.

32

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

33

131-52

NUT,3/8"-16, GC

WASHER - lock 3/8" NC

4шт.

34

S512159

SUPPORT

BAR - bearing support

2шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S229915

SHAFT

1шт.

37

S219278

ROD

- connecting

1шт.

38

S229518

ROD

- connecting

1шт.

39

S10767

PIN

- clevis - 3/8" x .891" grip length

2шт.

40

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

42

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set 1/4" x 3/8" NC

1шт.

43

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.
