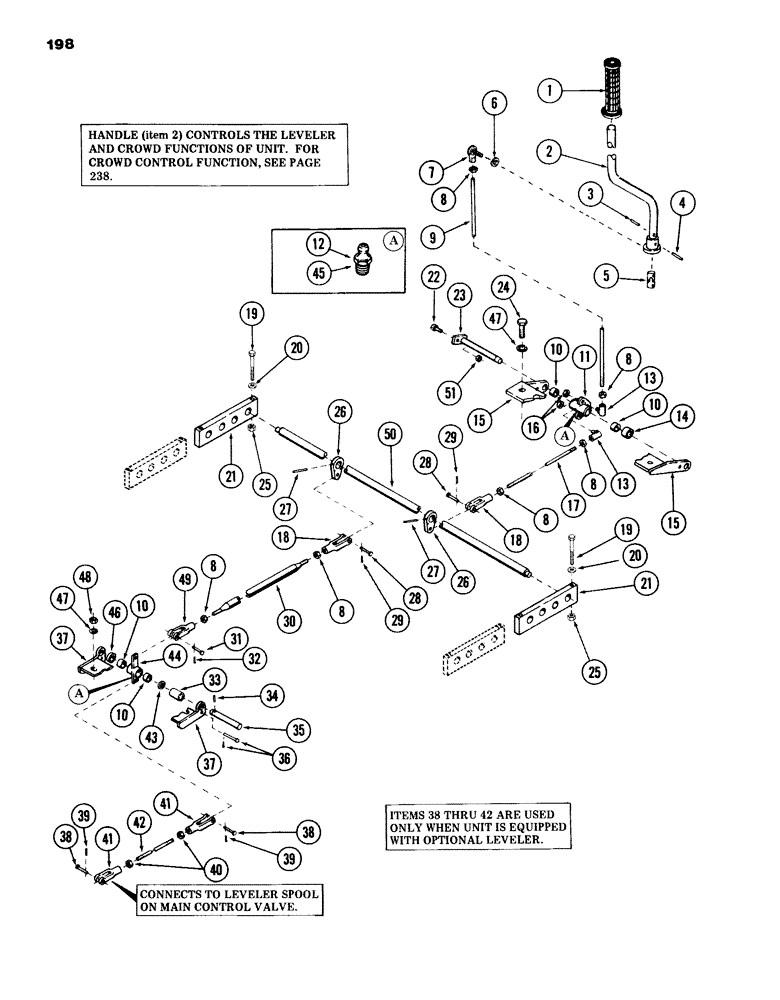

Запчасти Case 980B (198) - LEVELER CONTROL HANDLE AND ATTACHING PARTS, (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S116544

GRIP

- handle (Replaces S115723)

1шт.

2

S513190

HANDLE

- leveler and crowd control

1шт.

3

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

4

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

5

S234960

YOKE

JOINT - universal

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

S236680

BALL JOINT

BALLJOINT, 3/8"

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam 3/8" NF

6шт.

9

S98159

STUD

1шт.

10

A30586

NEEDLE BEARING

BEARING - needle

6шт.

11

S231376

ARM ASSY.

BELLCRANK, Includes: Ref. 12

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

13

S215594

BALL

JOINT

2шт.

14

S108060

SPACER

1шт.

15

S235783

SUPPORT - bellcrank

2шт.

16

231-2446

NUT,3/8"-24, GB

NUT - lock 3/8" NC

2шт.

17

S80384

ROD - connecting

1шт.

18

S66383

YOKE

2шт.

191

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 1-1/4" NC (Grade 5)

4шт.

20

195-525

WASHER,3/8", SAE

- flat 7/16"

4шт.

21

S512159

SUPPORT

BAR - bearing support

2шт.

22

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

23

S231378

PIN

SHAFT

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

25

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

4шт.

26

S237342

LEVER

2шт.

27

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

28

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

2шт.

29

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

30

S10767

PIN

ROD - connecting

1шт.

31

S10767

PIN

- clevis - 3/8" x .891" grip length

1шт.

32

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

33

S110843

TUBE

SPACER - (long)

1шт.

34

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

35

S105985

PIN

1шт.

36

S105991

PIN - clevis - (locks bellcrank (ref 44) to yoke when OPTIONAL leveler is not used)

1шт.

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

37

S229512

SUPPORT, bellcrank

1шт.

38

S10767

PIN

- clevis - 3/8" x .891" grip length

2шт.

39

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

40

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam - 3/8" NF

2шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

42

S81263

ROD

- connecting

1шт.

43

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

44

S229513

ARM ASSY.

BELLCRANK, Includes: Ref. 45

1шт.

45

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

46

S105986

SPACER - (short)

1шт.

47

95-33

WASHER - flat 1/2"

5шт.

48

131-70

NUT,1/2"-13, GB

NUT - 1/2" NC

2шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

50

S229405

SHAFT

1шт.

51

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC

1шт.
