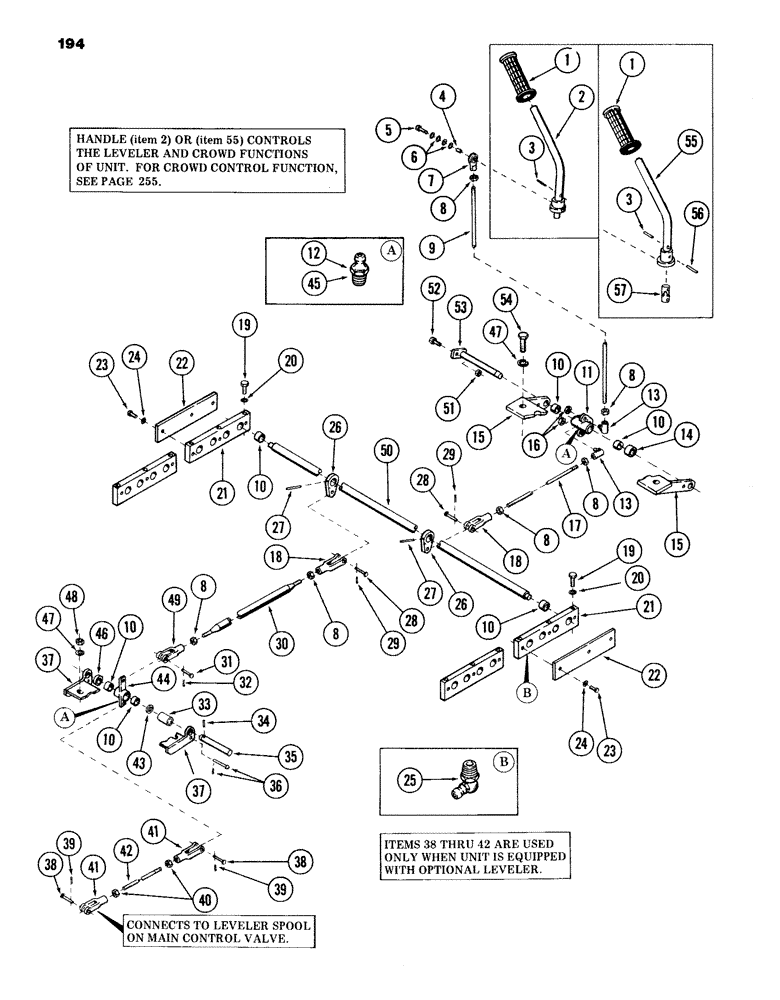

Запчасти Case 980B (194) - LEVELER CONTROL HANDLE AND ATTACHING PARTS, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

S238743

SWIVEL CONNECTION

GRIP, handle - (Replaces S109220)

1шт.

2

S512410

HANDLED SHAFT

HANDLE, leveler and crowd control - (used on units prior to PIN 6203856) - (Replaces S511066)

1шт.

3

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (Replaces 138-134) 1/4" x 1 1/2", Slotted

1шт.

4

S108042

SPACER

1шт.

5

114-21

CPSW - 1/4" - 28 NF x 1-1/2" Gr 8 Locking, 1/4"-28 x 1 1/2", G8

1шт.

6

S108041

SPACER

4шт.

7

S236680

BALL JOINT

BALLJOINT - (Replaces S108030)

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 28 NF

6шт.

9

S108056

STUD

1шт.

10

A30586

NEEDLE BEARING

BEARING, needle

6шт.

11

S231376

ARM ASSY.

BELLCRANK, Includes: Ref. 12

1шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (straight)

1шт.

13

S215594

BALL

JOINT

2шт.

14

S108060

SPACER

1шт.

15

S231373

SUPPORT, bellcrank

1шт.

16

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" - 24 NC

2шт.

17

S80384

ROD, connecting

1шт.

18

S66383

YOKE

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CPSW - 3/8" - 16 NC x 1" Gr 5

6шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

S511030

BAR, bearing support

2шт.

22

S231268

PLATE, bearing cover

1шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

25

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 90 degrees

8шт.

26

S237342

LEVER

- (Replaces S229872)

2шт.

27

138-40

PIN, roll

2шт.

28

S105940

PIN,11.02mm OD x 22.23mm L

clevis

2шт.

29

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, cotter - 5/32" x 3/4" long

2шт.

30

S229507

ROD

connecting

1шт.

31

S10767

PIN

clevis - 3/8" x .891" grip length

1шт.

32

132-69

COTTER PIN,5/32" x 1"

PIN, cotter - 5/32" x 3/4" long

1шт.

33

S110843

TUBE

SPACER - (long)

1шт.

34

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

35

S105985

PIN

1шт.

36

S105991

PIN, clevis - (locks bellcrank, ref 44 to yoke when OPTIONAL leveler is not used)

1шт.

37

S229512

SUPPORT, bellcrank

1шт.

38

S10767

PIN

clevis - 3/8" x .891" grip length

2шт.

39

132-69

COTTER PIN,5/32" x 1"

PIN, cotter - 5/32" x 3/4" long

2шт.

40

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

2шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

42

S81263

ROD

connecting

1шт.

43

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

44

S229513

ARM ASSY.

BELLCRANK, Includes: Ref. 45

1шт.

45

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (straight)

1шт.

46

S105986

SPACER - (short)

1шт.

47

95-8

WASHER,1/2"

flat 1/2"

4шт.

48

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

For shift lever boot see figure 66

1шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

50

S229405

SHAFT

1шт.

51

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

52

113-71

BOLT,Hex, 1/4" - 20 x 4-1/4", Gr 5

CPSW -1/4" - 20 NC x 1-1/4" Gr 5

1шт.

53

S231378

PIN

SHAFT

1шт.

54

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

Includes: Ref. 55 - 57 Hex, 3/8"-16 x 1 3/8", G5

2шт.

55

S512410

HANDLED SHAFT

HANDLE, leveler and crowd control - (used on units with PIN 6203856 and after)

1шт.

56

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Used on units with PIN 6203856 and after 1/4" x 1 1/2", Slotted

1шт.

57

S234960

YOKE

JOINT, universal - (used on units with PIN 6203856 and after)

1шт.
