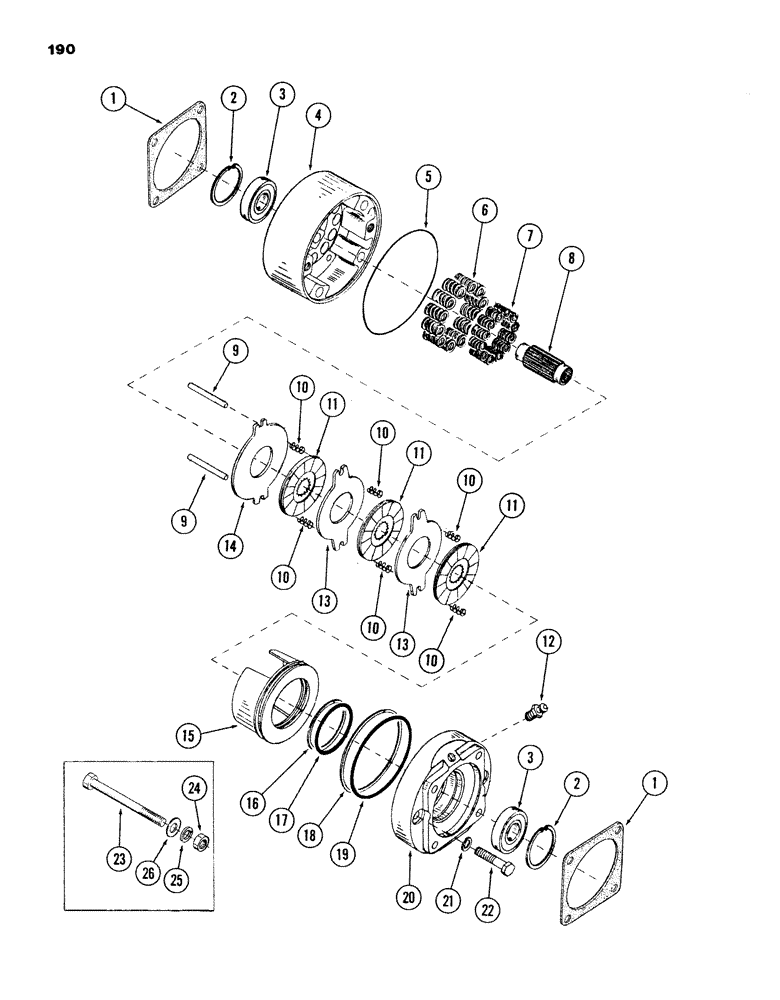

Запчасти Case 980B (190) - TRACK DRIVE BRAKE, (USED ON UNITS PRIOR TO PIN 6203868) (05) - UPPERSTRUCTURE CHASSIS

S512706

BRAKE

track drive - (for replacement order S512396), Includes: Ref. 1 - 22

2шт.

1

S107753

GASKET

2шт.

2

D66413

SNAP RING,2.688", Int, #268

Ring, Snap, 2.688", Int, #268

2шт.

3

S107752

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING, ball

2шт.

4

S107751

HOUSING

1шт.

5

S107759

PACKING

1шт.

6

S107755

SPRING

compression

12шт.

7

S107754

SPRING

compression

12шт.

8

S107768

SHAFT

1шт.

9

S107760

PIN

2шт.

10

S107758

SPRING

compression

6шт.

11

S112344

DISK HARROW

DISC, rotating

3шт.

FIG 11 1 11/16 ID

1шт.

12

S107762

SCREW

bleeder

1шт.

13

S109456

DISC

stationary

2шт.

14

S107756

DISC

primary

1шт.

15

S107764

PISTON

1шт.

16

S107767

BACK-UP RING

back up

1шт.

17

S107766

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

PACKING

1шт.

18

S107765

BACK-UP RING

back up

1шт.

19

S107763

O-RING

PACKING

1шт.

20

S107769

PLATE

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" - NC x 2-1/4" Gr 5

2шт.

23

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

CPSW - 1/2" - 13 NC x 5-3/4" Gr 5 - (mounts brake to track drive motor)

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

26

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

hardened

4шт.
