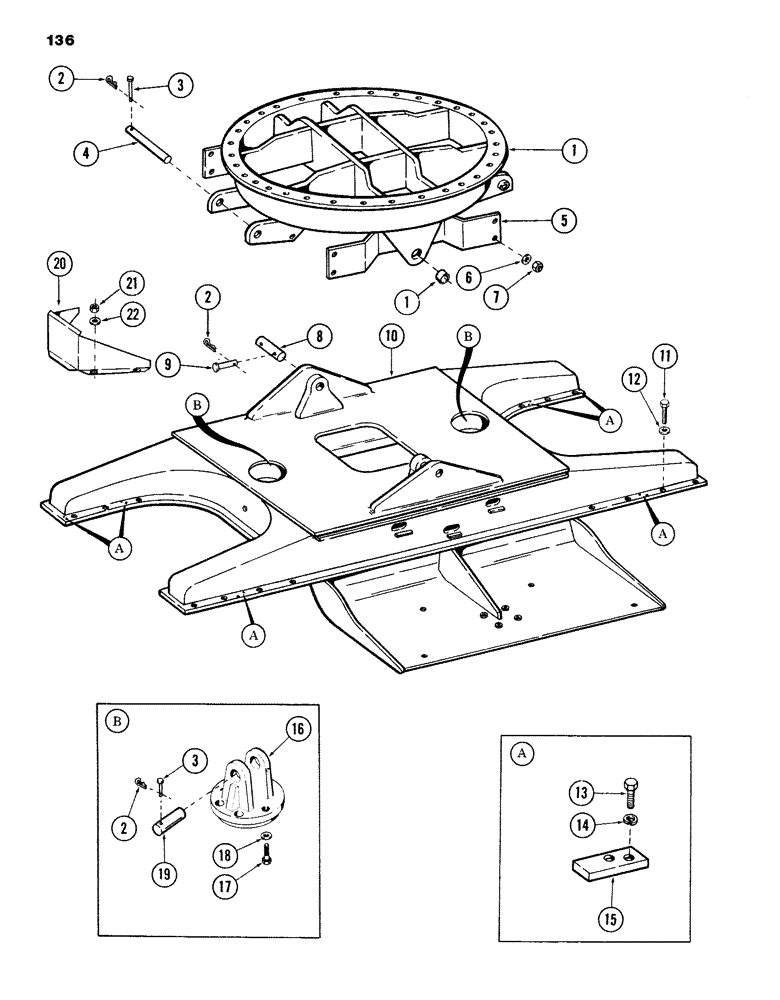

Запчасти Case 980B (136) - TURNTABLE LEVELER WITH PINS AND HARDWARE, (USED ON UNITS (05) - UPPERSTRUCTURE CHASSIS

1

S610362

LEVEL

ER ASSY - upper

1шт.

S202192

BUSHING

leveler

2шт.

2

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

6шт.

3

S61973

AXLE PIN

PIN - clevis 1/2" x 3.766" grip length

4шт.

4

S78554

PIN

- leveler cylinder to upper leveler

2шт.

5

S611713

COVER

- mounts to upper leveler

2шт.

6

195-103

WASHER,5/16"

- flat 3/8"

8шт.

7

131-206

NUT,3/8"-16

NUT - lock 3/8" NC hex

8шт.

8

S113536

PIN

- upper leveler to lower leveler

2шт.

9

S61976

CLEVIS PIN

PIN - clevis 5/8" x 4.516" grip length

2шт.

10

S955133

LEVELER ASSY - lower

1шт.

11

26-148

BOLT - 7/8" x 3" NC hex (Grade 8) - (to track frame)

28шт.

12

S92341

WASHER

- hard 7/8"

28шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

15

S110499

BAR - stop

6шт.

16

S513715

BRACKET

- leveler cylinder mounting

2шт.

17

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

(Supersedes 113-481) Hex, 1/2"-13 x 1 1/4", G8, Full Thd

6шт.

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- 1/2" x 2" NC hex (Grade 8) - (Supersedes 113-481)

2шт.

18

S95569

WASHER

- hardened 1/2"

8шт.

19

S108638

PIN

- leveler cylinder to lower leveler

2шт.

20

S614046

GUARD, dirt - (used on units with PIN 6204076 and after)

2шт.

21

131-70

NUT,1/2"-13, GB

NUT, lock - 1/2" NC hex - (used on units with PIN 6204076 and after)

8шт.

22

S95569

WASHER

- hardened - 1/2" - (used on units with PIN 6204076 and after)

8шт.
