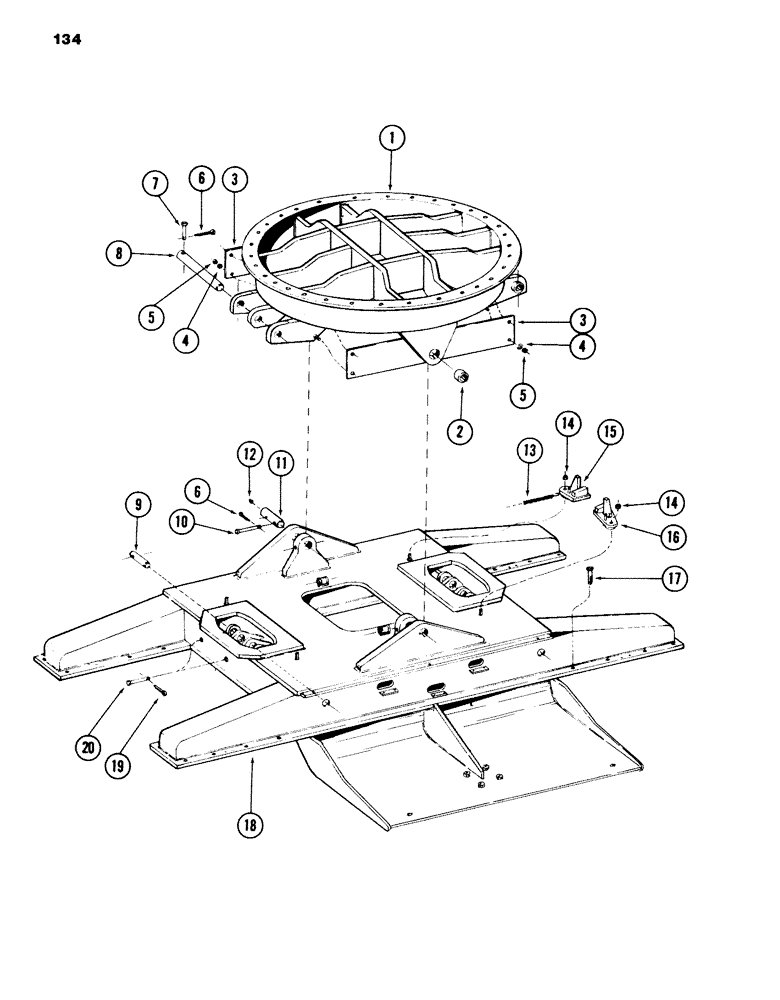

Запчасти Case 980B (134) - TURNTABLE LEVELER WITH PINS AND HARDWARE, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

S603820

LEVELER, upper, Includes: Ref. 2

1шт.

2

S202192

BUSHING

2шт.

3

S214790

COVER, motor - (rear side)

2шт.

4

195-103

WASHER,5/16"

flat - 3/8"

8шт.

5

131-206

NUT,3/8"-16

NUT, self locking - 3/8" - 16 NC

8шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

7

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

8

S85708

PIN

- (cylinder to leveler ring)

2шт.

9

S87086

PIN

4шт.

10

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

11

NSS

NOT SOLD SEPARAT

PIN - (leveler ring to base ), Includes: Ref. 12

2шт.

Prior to ordering replacement pin measure length of pin. If pin length is 8.75" order pin S85739 and if pin length is 9.31" order pin S113536.

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

2шт.

13

S64335

SPRING, stop

2шт.

14

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

15

S231249

STOP, leveler ring - (used on units prior to PIN 6203984)

2шт.

16

S231248

STOP, leveler ring - (used on units prior to PIN 6203984)

2шт.

17

26-1440

CAPSCREW,Hex, 7/8" - 9 x 2 1/2", Gr 8

CPSW - 7/8" - 9 NC x 2-1/2" Gr 8

32шт.

Should be 26-1448

1шт.

18

S954514

BASE, leveler

1шт.

19

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

20

S61972

PIN

4шт.
