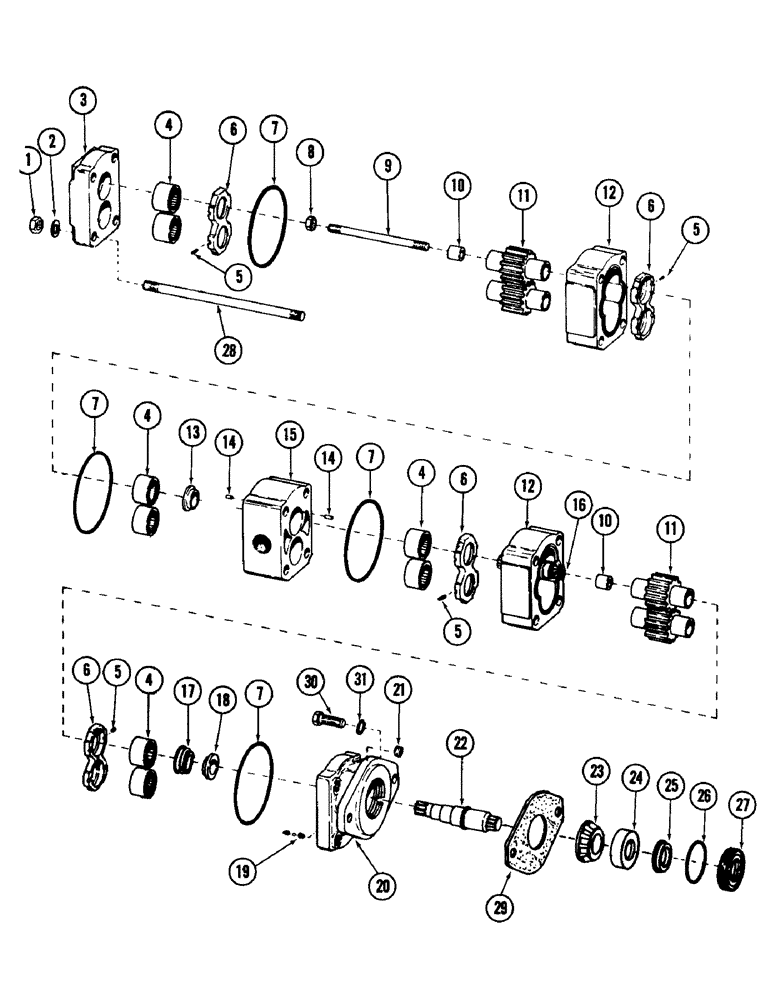

Запчасти Case 980 (134) - SWING MOTOR (07) - HYDRAULIC SYSTEM

S39993

MOTOR

swing

1шт.

1

25-119

NUT,9/16"-18, G5

- 9/16" NC

4шт.

2

D31957

WASHER

flat - 21/32" ID

4шт.

3

A24842

COVER, port end

1шт.

4

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

5

D35673

SEAL

pocket - 6" long - (Bulk)

1шт.

6

D31955

PLATE

thrust

4шт.

7

D41391

O-RING

TETREASEAL - 4.109" ID x 4.375" OD

4шт.

8

S63533

LOCK NUT

NUT, lock

1шт.

9

S76268

STUD, connecting - internal

1шт.

10

S76245

SPACER

2шт.

11

S72565

GEAR-SET

GEAR SET - 1-3/4"

2шт.

12

S75508

HOUSING

gear

2шт.

13

S63528

BUSHING

shaft

2шт.

14

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

15

S72899

CARRIER

bearing

1шт.

16

S63530

SHAFT

connecting

1шт.

17

D31953

VALVE SPRING

SPRING

1шт.

18

D31952

BUSHING

shaft

1шт.

19

S61749

VALVE

CHECK ASSEMBLY

2шт.

20

S77722

COVER

shaft end

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe (Recessed hex head) Hex Soc, 1/4"-18 NPTF

2шт.

22

S64277

SHAFT

1шт.

23

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE, bearing

1шт.

24

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP, bearing

1шт.

25

S70416

OIL SEAL

high pressure

1шт.

26

D31947

O-RING

"O" RING - 2.234" ID x 2.500" OD

1шт.

27

S70415

RETAINER

RING, retainer

1шт.

28

S76269

STUD

connecting - external

4шт.

29

S203387

GASKET

1шт.

30

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.
