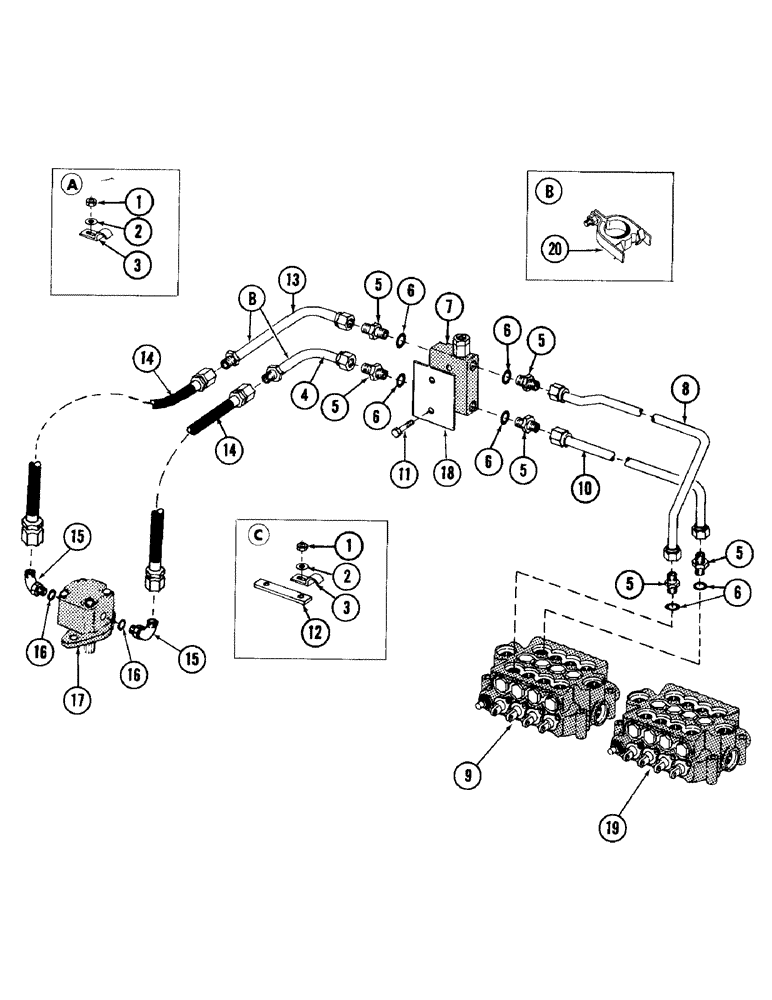

Запчасти Case 980 (132) - SWING MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

131-10

NUT,1/2"-13, GB

(Used on units with S/N 6203000 thru 6203568)

2шт.

2

95-7

WASHER,7/16"

WASHER, flat - 1/2" - (Used on units with S/N 6203000 thru 6203568)

2шт.

3

S77469

CLAMP

Tube - (Used on units with S/N 6203000 thru 6203568)

2шт.

4

S502077

TUBE,1.25" OD x 14, 5" L

LINE, hydraulic

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter

6шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

7

REF

INSTRUCTION

VALVE, swing relief (For breakdown, see figure136)

1шт.

8

S502074

LINE,1.25" OD

Hydraulic

1шт.

9

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

10

S502075

TUBE,1.25" OD x 17.43, 5.8" L

LINE, hydraulic

1шт.

11

187-1519

SPARE PART 3/8"-16 NC x 7/8"

2шт.

12

S82087

BLOCK

Spacer - (Used on units with S/N 6203000 thru 6203568)

2шт.

13

S502076

TUBE,1.25" OD x 12.5, 5" L

LINE, hydraulic

1шт.

14

S8628

HOSE

High pressure - 1" ID x 36" long - (With 1-5/16"-12 female pressed on couplings)

2шт.

15

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

16

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

17

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see figure 134)

1шт.

18

S82529

SPARE PART PRODUCT

1шт.

19

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see figure 150)

1шт.

20

S93266

CLAMP

Tube - (Used on units with S/N 6203569 and after)

2шт.
