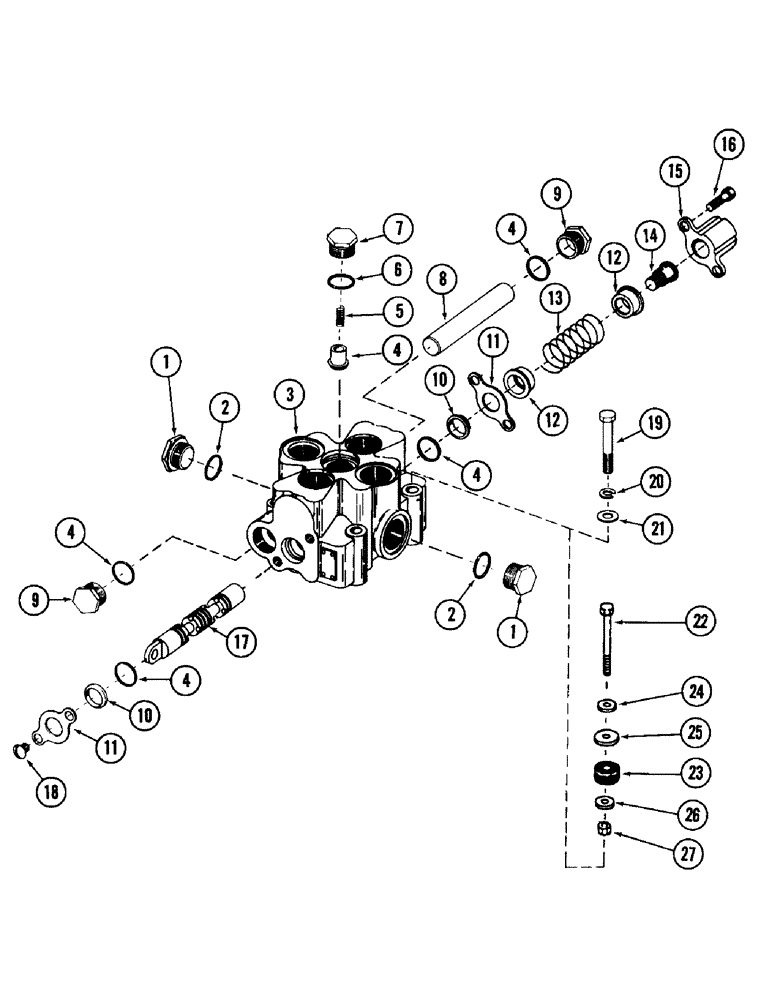

Запчасти Case 980 (128) - 1-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506848

VALVE, 1 spool main control

1шт.

1

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

3

S95165

HOUSING

1шт.

4

S13716

VALVE POPPET

POPPET

1шт.

5

S13715

SPRING

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

5шт.

7

S13714

PLUG

1шт.

8

S62276

PLUG

spacer

1шт.

9

S13707

PLUG

2шт.

10

S62092

WIPER

2шт.

11

S13829

PLATE

seal

2шт.

12

S62288

SEAT

spring

2шт.

13

S95166

SPRING

1шт.

14

S62292

BOLT

CPSW, special

1шт.

15

S62278

CAP

plunger

1шт.

16

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW, socket head

2шт.

17

S215229

PLUNGER

1шт.

18

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" - 16 NC x 1/2"

2шт.

19

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(Used on units with S/N 6203000 thru 6203568) Hex, 1/2"-13 x 3 3/4", G5

3шт.

20

92-8

LOCK WASHER,1/2"

(Used on units with serial number 6203000 thru 6203568) 1/2"

3шт.

21

95-7

WASHER,7/16"

flat - 1/2" - (Used on units with serial number 6203000 thru 6203568)

3шт.

22

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Used on units with S/N 6203569 and after) Hex, 1/2"-13 x 4 3/4", G5

3шт.

23

S49527

MOUNTING PARTS

MOUNT, lord - (Used on units with serial number 6203569 and after)

3шт.

24

95-7

WASHER,7/16"

flat - 1/2" - (Used on units with serial number 6203569 and after)

3шт.

25

S98895

WASHER

flat - (Used on units with serial number 6203569 and after)

3шт.

26

92-8

LOCK WASHER,1/2"

(Used on units with serial number 6203569 and after) 1/2"

3шт.

27

131-10

NUT,1/2"-13, GB

NUT, LOCK, (Used on units with S/N 6203569 and after) 1/2"-13, GB

3шт.
