(126) - LEVELER CHECK VALVE

Запчасти Case 980 (126) - LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

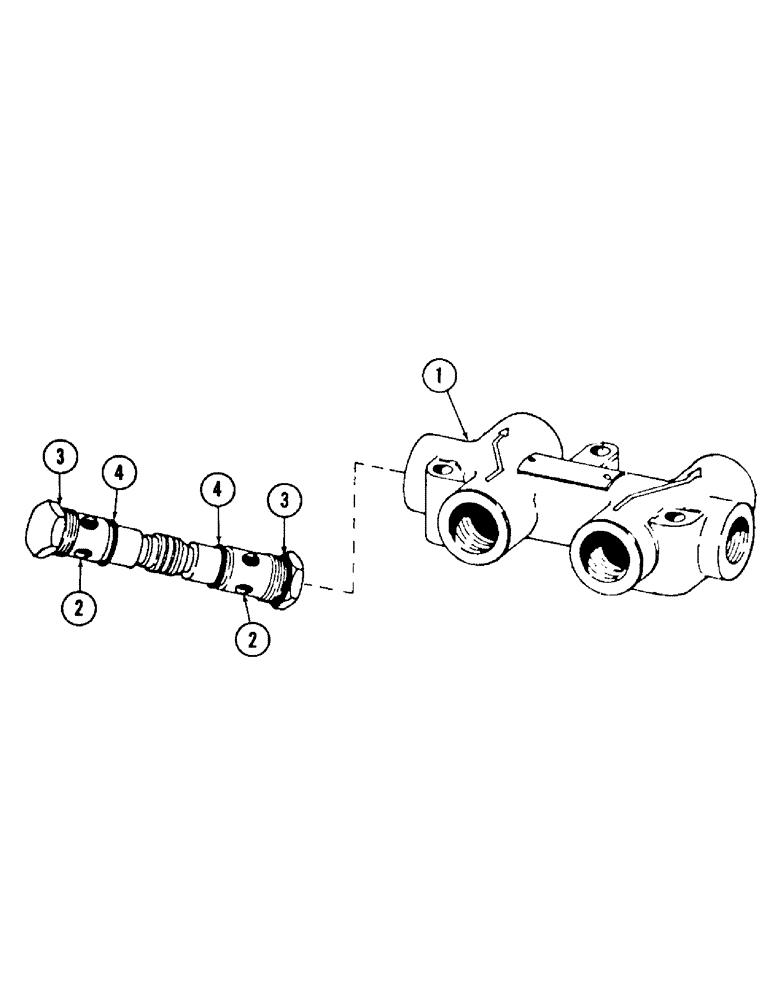

Схема запчастей Case 980 - (126) - LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D47256

VALVE

leveler check

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, valve

1шт.

2

S61961

CHECK VALVE

CARTRIDGE, double acting

1шт.

4

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING, sleeve and poppet

2шт.

5

S96675

SPRING

- (Not illustrated)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING, plug

2шт.
