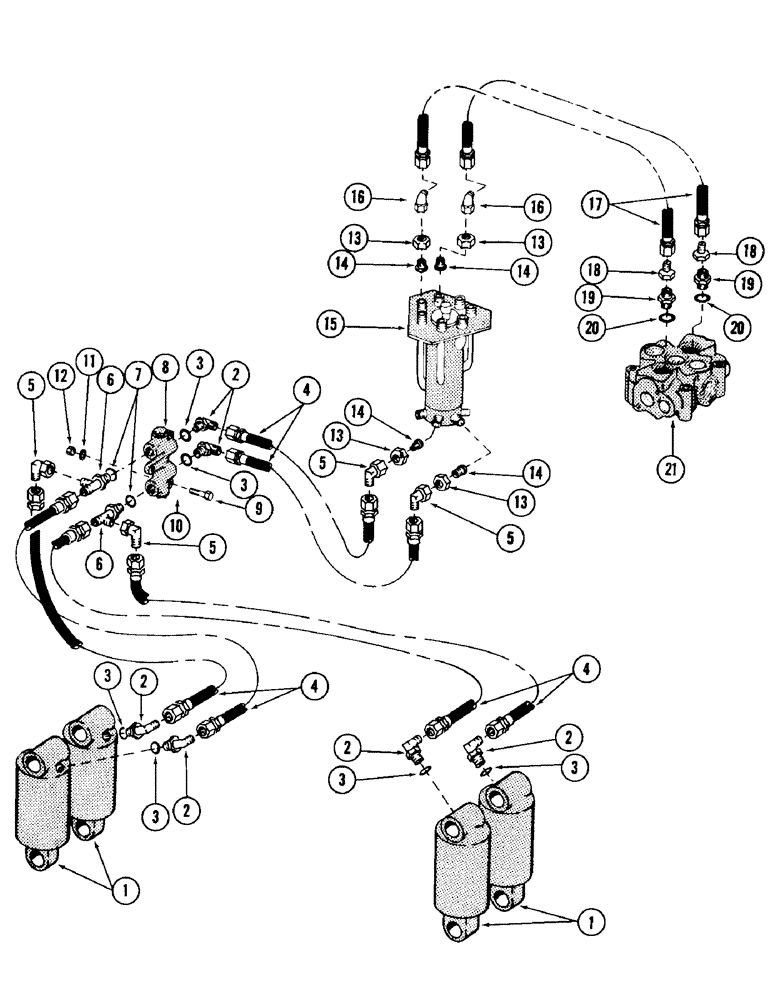

Запчасти Case 980 (125A) - LEVELER HYDRAULICS, (USED WITH SERIAL NUMBER 6203243 AND AFTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see figure 90)

4шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable

6шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(.818" OD)

6шт.

4

D39245

HOSE

High pressure - 3/8" ID x 20" long - (With 3/4"-16 female pressed on couplings)

6шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

(1/2" tube)

4шт.

6

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

(1/2" tube) - 3/4"-16 male x 3/4"-16 male x 3/4"-16 male

2шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(.818" OD)

2шт.

8

REF

INSTRUCTION

VALVE, leveler check - (For breakdown, see figure 126)

1шт.

9

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

95-4

WASHER,1/4"

2шт.

11

92-4

LOCK WASHER,1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

(3/4" tube) - 1-1/16"-12 female

4шт.

14

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER (3/4" to 1/2" tube reduction) - 3/4"-16 male

4шт.

15

REF

INSTRUCTION

SWIVEL, seven port hydraulic - (For breakdown, see page 174)

1шт.

16

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

(1/2" tube)

2шт.

17

S11231

HOSE ASSY.

High pressure - 3/8" ID x 68" long - (With 3/4"-16 female pressed on couplings)

2шт.

18

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER (5/8" to 1/2" tube reduction) - 3/4"-16 male

2шт.

19

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

21

REF

INSTRUCTION

VALVE, main hydraulic - (For breakdown, see page 128)

1шт.
