Запчасти Case 980 (124) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6203000 THRU 6203242) (07) - HYDRAULIC SYSTEM

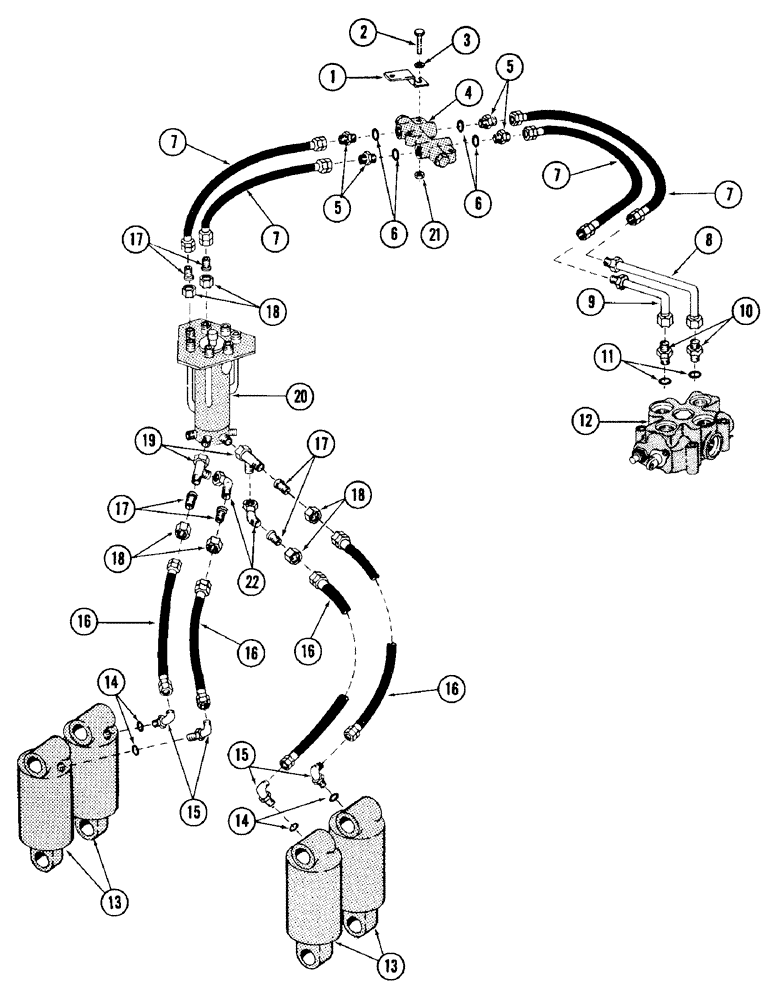

Схема запчастей Case 980 - (124) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6203000 THRU 6203242) (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

S69624

SPARE PART Valve mounting

2шт.

2

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

(Steel hardened) - 17/32" ID x 1-1/16" OD

2шт.

4

REF

INSTRUCTION

VALVE, level check - (For breakdown, see figure 126)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter

4шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(.818" OD)

4шт.

7

D39245

HOSE

High pressure - 3/8" ID x 28" long (With 3/4"-16 female pressed on couplings)

4шт.

8

S502090

SPARE PART Hydraulic

1шт.

9

S502089

SPARE PART Hydraulic

1шт.

10

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

12

REF

INSTRUCTION

VALVE, main hydraulic - (For breakdown, see page 128)

1шт.

13

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see figure 90)

4шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable

4шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(.818" OD)

4шт.

16

D39245

HOSE

High pressure - 3/8" ID x 20" long - (With 3/4"-16 female pressed on couplings)

4шт.

17

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER (3/4" x 1/2" reduction) - 3/4"-16 male

6шт.

18

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

6шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

(.500" OD)

1шт.

20

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see page 174)

1шт.

21

131-4

LOCK NUT,5/16"-18, GB

2шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

(1/2" tube)

2шт.

Выбрано товаров: 22
