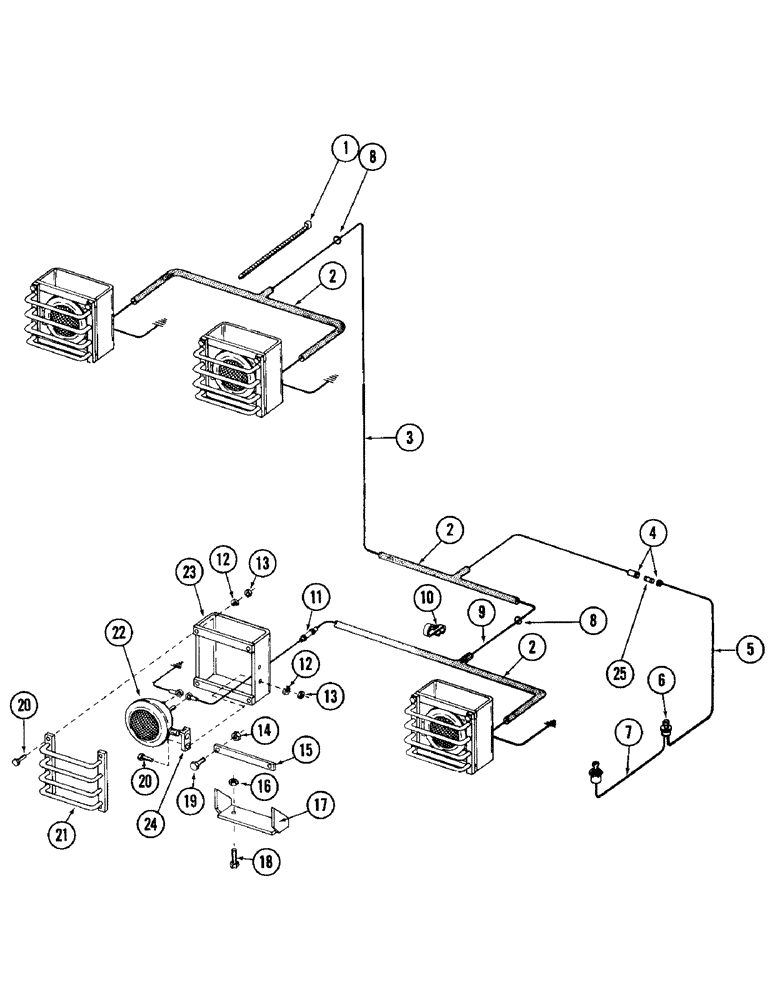

Запчасти Case 980 (054) - WORK LIGHTS AND GUARDS (06) - ELECTRICAL SYSTEMS

1

S73387

CLIP

TIE, cable

14шт.

2

M20693

LOOM - 45" long

3шт.

3

S221234

WIRE ASSEMBLY

1шт.

4

S16869

HOLDER

fuse

1шт.

5

S209089

HARNESS

WIRE ASSEMBLY

1шт.

6

S16866

SWITCH

work light

1шт.

7

S221241

WIRE ASSEMBLY

1шт.

8

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

2шт.

9

S221233

WIRE ASSEMBLY

1шт.

10

S48572

CLIP

wire

4шт.

11

223-191

TERMINAL CONNECTOR,14 - 16

PLUG, terminal

4шт.

12

92-6

LOCK WASHER,3/8"

20шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

16шт.

14

131-72

LOCK NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

2шт.

15

S86493

SPACER

1шт.

16

131-72

LOCK NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

2шт.

17

S218599

BRACKET ASSEMBLY

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

CPSW - 1/2" - 13 NC x 2-1/2"

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

20шт.

21

S212578

PROTECTOR

GUARD, protector

4шт.

22

S225548

LIGHT

work

4шт.

23

S212579

GUARD

housing

4шт.

24

S222287

BRACKET

, Serial Range: light-housing

4шт.

25

223-15

FUSE,15 Amp, Type 3AG

1шт.
