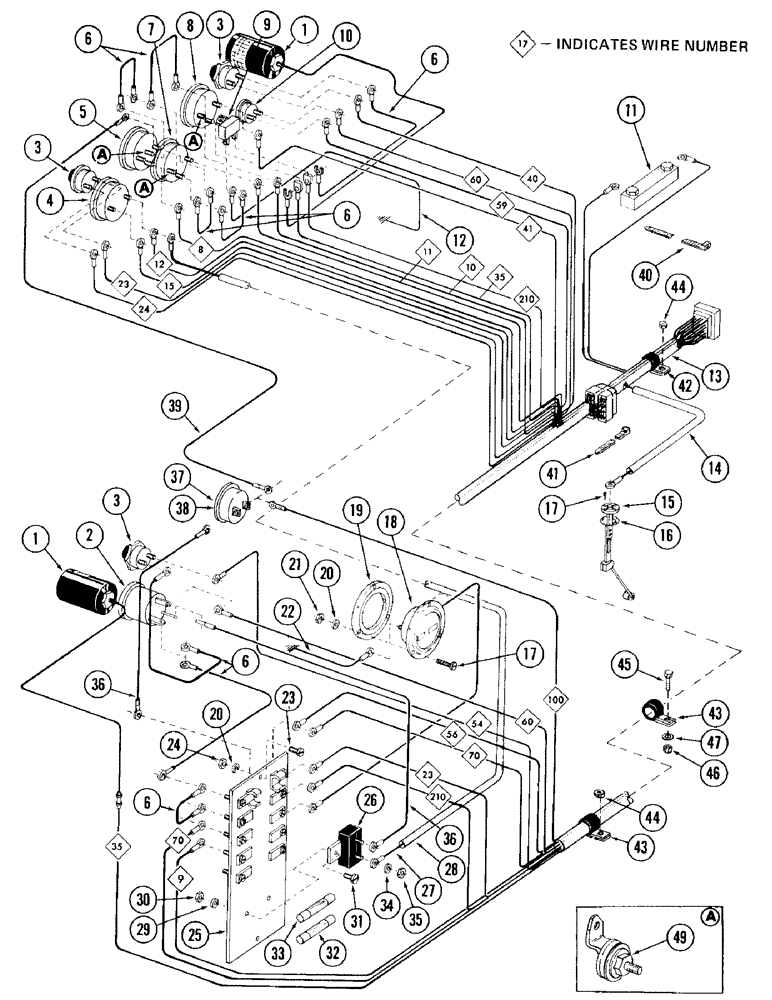

Запчасти Case 980 (050) - CAB ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

S96650

LIGHT

Panel

2шт.

Ref #2 - Replaced by S612815 06/07/96

1шт.

2

S76366

SWITCH

Ignition

1шт.

D36822

KEY

Ignition

1шт.

3

D34934

LAMP

BUTTON, starter, horn and cold start

3шт.

Ref #3 - Should be D34924 06/07/96

1шт.

4

D45831

AMMETER

GAUGE

1шт.

5

S27829

ELECTRICAL GAUGE

Fuel

1шт.

6

S208230

SPARE PART Jumper - 12 gauge wire x 4" long

7шт.

7

S27824

ELECTRICAL GAUGE

Engine temperature

1шт.

8

S27827

GAUGE

Oil pressure

1шт.

9

S16866

SWITCH

Panel light

1шт.

10

REF

INSTRUCTION

SWITCH, heater - (Furnish with heater)

1шт.

11

L11349

SWITCH

Micro - (Used with brake warning system)

1шт.

12

S208228

SPARE PART Jumper - 12 gauge wire x 9" long

1шт.

13

S223281

ELECTRICAL WIRE

WIRE HARNESS, main wiring

1шт.

14

M20693

SPARE PART LOOM - 125" long

1шт.

15

S502600

SENDER UNIT

SENDER Tank

1шт.

16

S49745

GASKET

GASKET, sending unit

1шт.

17

173-32

SCREW,Sl Rnd Hd, #4 - 40 x 3/4"

Machine - No. 4-40 NC x 3/4"

8шт.

18

D44786

HOURMETER

1шт.

19

A27780

FLANGE

DAMPENER

1шт.

20

192-5

LOCK WASHER,#6

5шт.

21

129-3

NUT,#4-40

3шт.

22

223-61

TERMINAL CONNECTOR,14 - 16

1шт.

23

171-64

SPARE PART No. 6-32 NC x 3/4"

2шт.

24

129-5

NUT,#6-32

2шт.

25

S213686

HOLDER

Fuse

1шт.

26

S49918

BREAKER

Circuit

1шт.

27

S213755

ELECTRICAL WIRE

WIRE ASSEMBLY, ground

1шт.

28

M20693

SPARE PART LOOM - 22" long

1шт.

29

92-3

LOCK WASHER,#10

2шт.

30

129-7

NUT,Hex, #10 - 24

2шт.

31

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

Machine - No. 10-24 NC x 5/8"

2шт.

32

223-15

FUSE,15 Amp, Type 3AG

3шт.

33

223-34

FUSE,7 1/2 Amp, Type 3AG

1шт.

34

92-3

LOCK WASHER,#10

2шт.

35

129-27

NUT,Hex, #10 - 32

2шт.

36

S208228

SPARE PART Jumper - 12 gauge wire x 9" long

1шт.

37

S96034

LIGHT

Brake warning

1шт.

38

S97035

BULB

Brake warning light

1шт.

39

S209787

ELECTRICAL WIRE

WIRE Jumper - 14 gauge wire x 20" long

1шт.

40

S73387

CLIP

TIE, cable

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

42

T42284

CLAMP

1шт.

43

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP

3шт.

44

131-6

LOCK NUT,3/8"-16, GC

NUT - 1/2"-13 NC

2шт.

45

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

46

131-2

NUT,1/4"-20, GB

1шт.

47

195-16

WASHER,#12

1/4"

1шт.

48

S223281

ELECTRICAL WIRE

WIRE HARNESS

1шт.

Ref #48 - Should be S223282 06/07/96

1шт.

49

S218800

RESISTOR

3шт.
