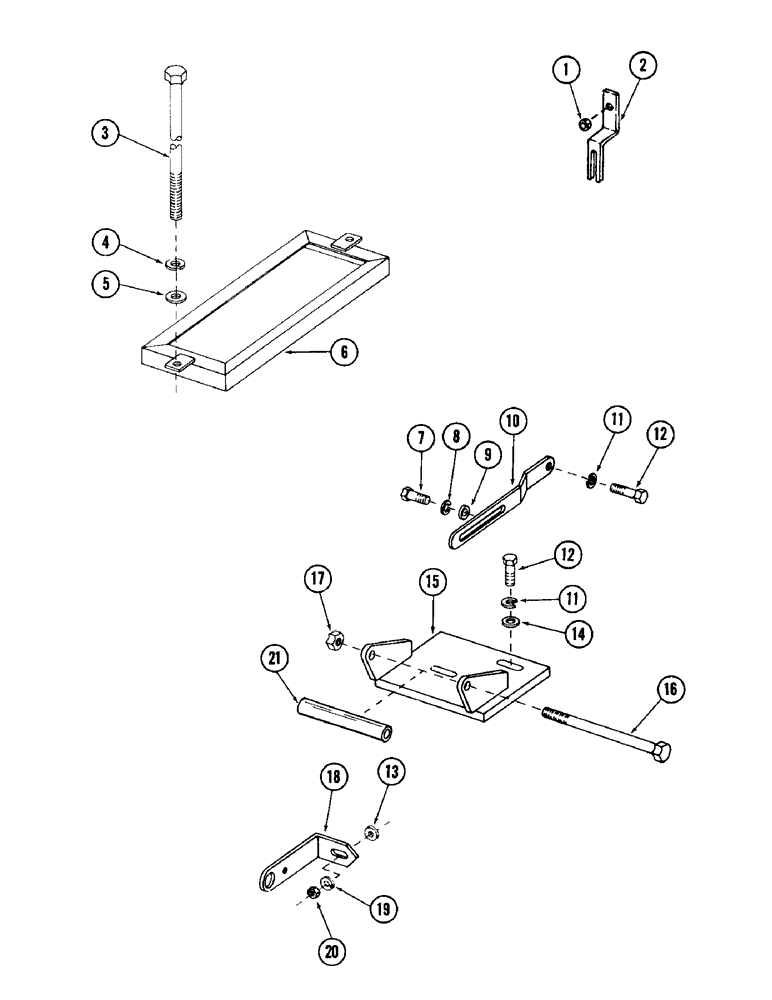

Запчасти Case 980 (046) - ELECTRICAL SYSTEM MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

131-2

NUT,1/4"-20, GB

LOCKNUT, , N.C 1/4"-20, GB

2шт.

2

S93331

BRACKET - micro-switch mounting

1шт.

3

13-8176

BOLT (MACHINE),Hex, 1/2" - 13 x 11", Gr 5

CPSW - 1/2" - 13 NC x 10"

4шт.

4

92-8

LOCK WASHER,1/2"

5шт.

5

S95569

WASHER

flat - 3/8"

4шт.

6

S507587

BRACKET

battery hold-down

2шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

8

92-8

LOCK WASHER,1/2"

5шт.

9

195-33

WASHER,1/2"

flat - 1/2"

1шт.

10

A59098

STRAP

alternator adjusting

1шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

1шт.

14

195-25

WASHER,3/8"

flat - 3/8"

2шт.

15

A38492

BRACKET

alternator adjusting

1шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CPSW - 3/8" - 16 NC x 3"

1шт.

17

131-463

NUT,3/8"-16

NUT, self locking - NC 3/8"-16

1шт.

18

S203190

BRACKET

horn

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

25-104

NUT,1/4"-20, G5

1шт.

21

S96111

SPACER - 1/2" pipe

1шт.
